PGD PRO SC1500 Heavy Commercial Sectional Garage Door Motor



PGD PRO SC1500 Heavy Commercial Sectional Door Motor

The PGD PRO SC1500 is our most powerful overhead sectional door motor, designed for large residential doors, workshops, farm sheds and commercial applications where a standard garage door opener simply isn’t enough.

Featuring a powerful 1500N motor, heavy-duty chain drive system and a fully boxed aluminium rail, the SC1500 is built to handle large insulated sectional doors with ease while delivering smooth, reliable operation year after year.

If you’re building a large shed, workshop, commercial building or have an oversized sectional garage door, this is the motor we recommend.



Why Choose The SC1500?

✔ Powerful 1500N lifting force

✔ Heavy-duty chain drive system

✔ Fully boxed aluminium rail for maximum strength

✔ Suitable for doors up to 4.2m high

✔ Soft start and soft stop operation

✔ Automatic close function

✔ Partial opening / pedestrian mode

✔ Obstacle detection safety system

✔ Rolling code security technology

✔ Compatible with wireless keypads and photo eyes

✔ Includes 2 remote controls

✔ DIY-friendly installation



Heavy Duty Boxed Aluminium Rail - 1 full 4m pcs

Unlike many garage door motors that use lightweight open rails, the PGD PRO SC1500 features a fully enclosed boxed aluminium rail system.

The boxed design provides greater rigidity and strength, helping reduce rail flex on large and heavy doors while delivering smoother operation and improved durability.

Perfect for oversized sectional doors where strength matters.

✔ Fully boxed aluminium construction

✔ Stronger than traditional open rails

✔ Reduced flex on wide doors

✔ Built for commercial and heavy-duty use

✔ Smooth and reliable chain drive operation



Recommended Applications

The SC1500 is ideal for:

• Large residential sectional doors

• Insulated sectional garage doors

• Farm sheds

• Workshops

• Commercial buildings

• High-stud garages

• Wide-span sectional doors

• Heavy-use applications



Door Size Guide

Recommended Door Width

Up to 5.0m wide — Excellent

5.0m to 6.0m wide — Recommended

Over 6.0m wide — Ideal

Recommended Door Height

Up to 2.4m high — Suitable

2.4m to 3.0m high — Recommended

3.0m to 4.2m high — Ideal

Recommended Door Weight

Up to 120kg — Suitable

120kg to 180kg — Recommended

180kg to 200kg — Ideal



Smart Features

The PGD PRO SC1500 includes a range of advanced features designed to improve convenience and safety.

✔ Automatic close setting

✔ Adjustable travel speed

✔ Adjustable courtesy light timer

✔ Partial opening function

✔ Soft start and soft stop

✔ Maintenance reminder function

✔ Obstacle detection

✔ Auto reverse safety protection

✔ External accessory terminals

✔ Photo eye compatible

✔ Fire alarm input terminal

✔ Pass door safety terminal

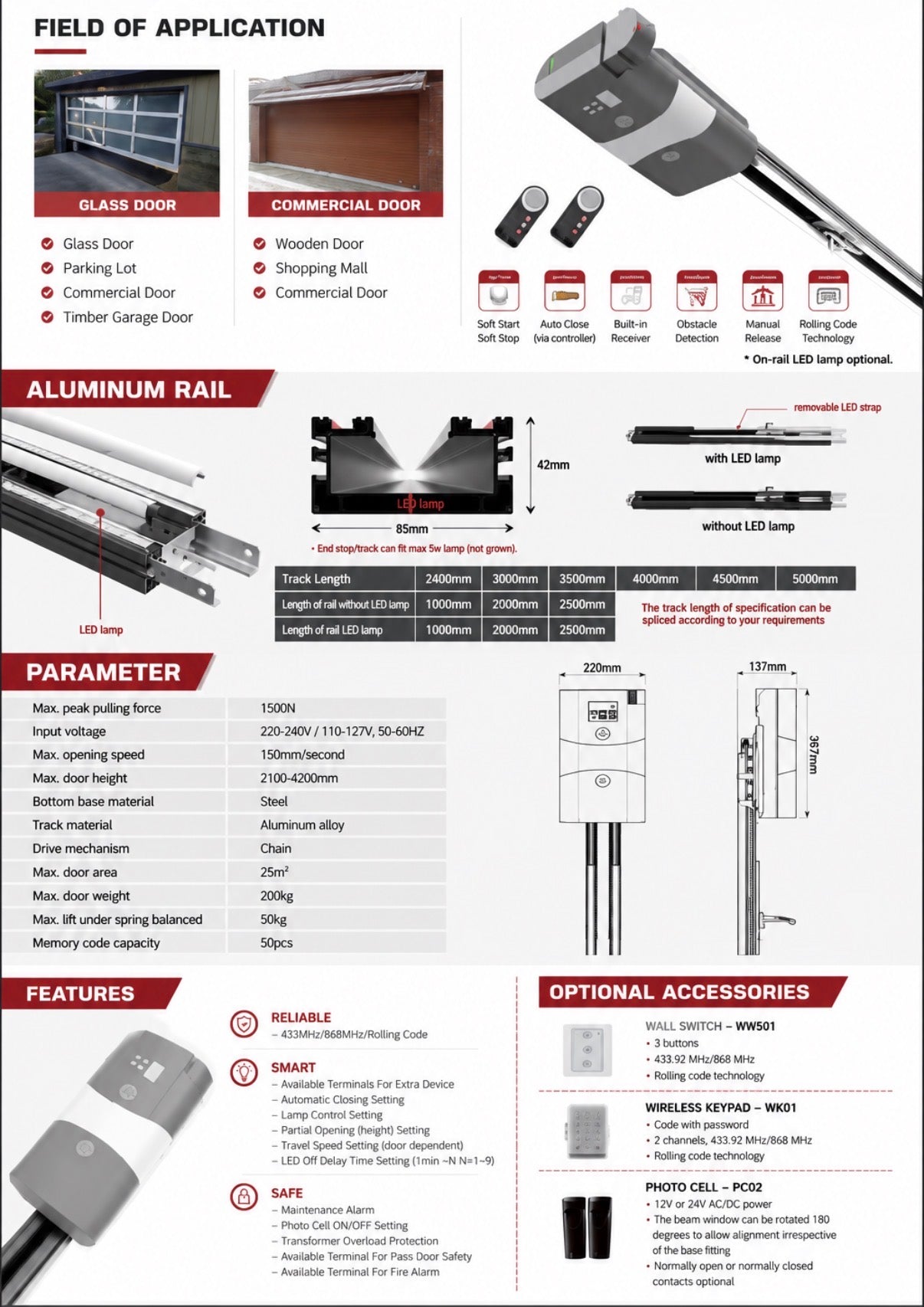

Technical Specifications

Motor Force: 1500N

Drive Type: Heavy Duty Chain Drive

Rail Type: Fully Boxed Aluminium Rail

Input Voltage: 220–240V AC

Opening Speed: 150mm/sec

Maximum Door Height: 4.2m

Maximum Door Area: 25m²

Maximum Door Weight: 200kg

Remote Capacity: 50 Remotes

Security: Rolling Code Technology

Safety Features: Auto Reverse & Obstacle Detection



What’s Included

• PGD PRO SC1500 Motor Head

• Heavy Duty Boxed Aluminium Rail

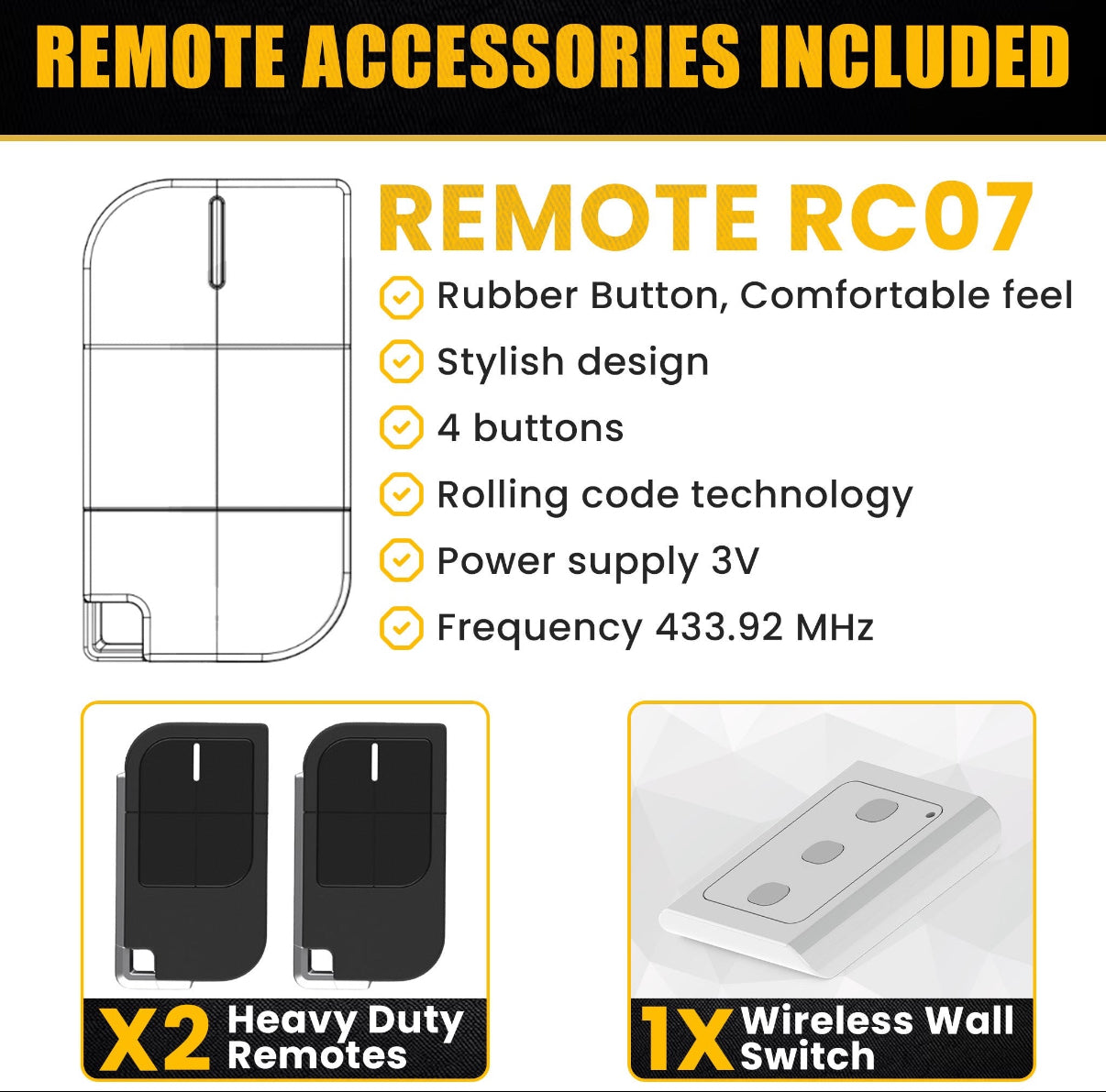

• 2 x Remote Controls

• Mounting Hardware

• Installation Brackets

• DIY Installation Instructions

PGD Recommendation

For sectional doors over 5 metres wide, over 2.7 metres high, or large insulated doors, the PGD PRO SC1500 is the motor we recommend.

Ideal for:

• Large Residential Garages

• Farm Sheds

• Workshops

• Commercial Buildings

• High-Stud Garages

• Wide Insulated Sectional Doors

Built with a powerful 1500N motor, heavy-duty chain drive and fully boxed aluminium rail, the SC1500 is designed for customers wanting a serious motor for serious doors.

Backed by local NZ support and a 5 Year Warranty.
