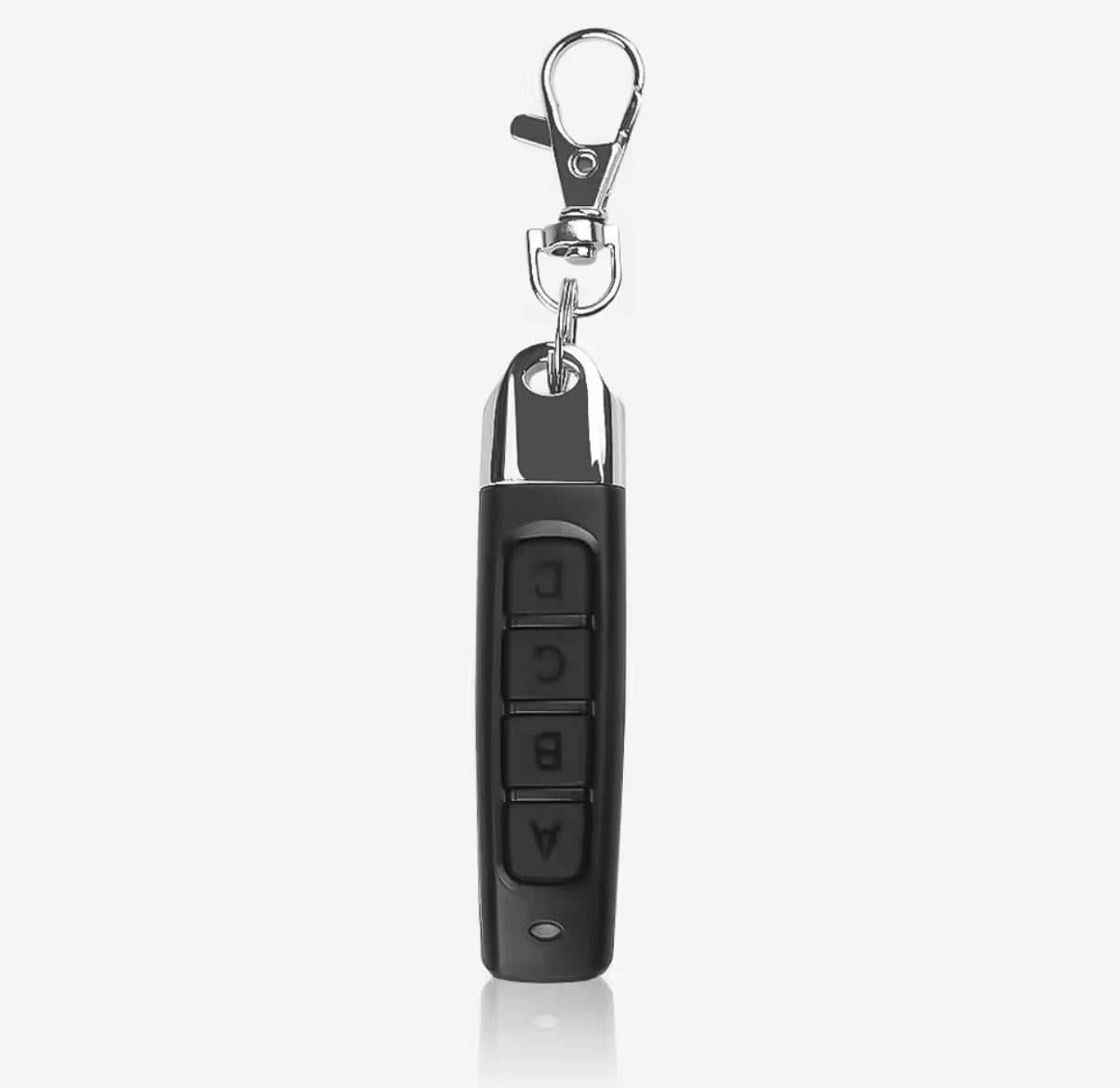

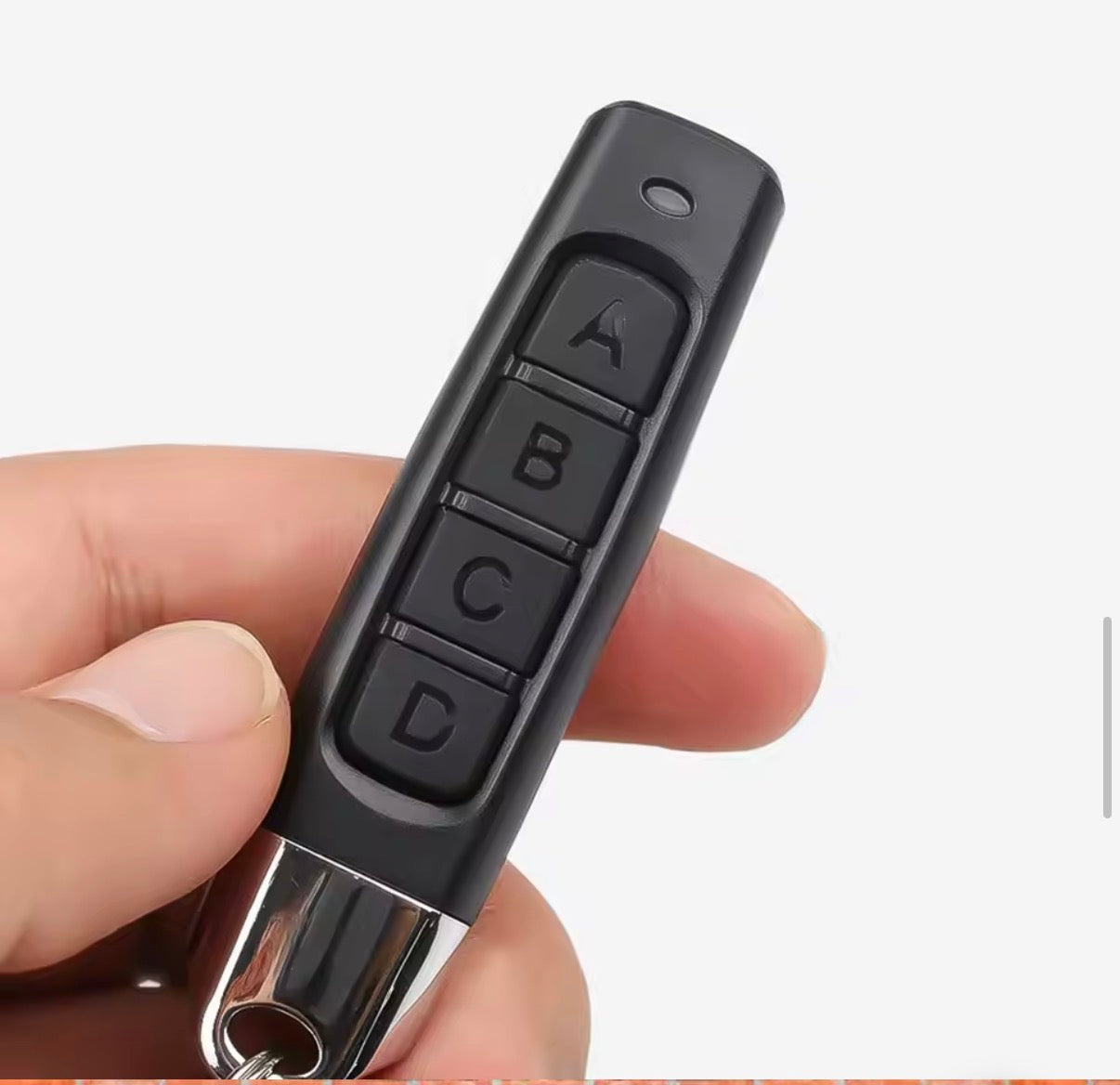

Basic Garage Door Clone Remote

Universal 433MHz Remote Control Duplicator

Copy compatible 433MHz fixed-code remotes with this compact 4-button remote duplicator. Suitable for a wide range of gates, garage doors, alarms and remote-controlled devices that use supported fixed-code chips.

Features

• 433MHz Frequency
• 4 Button Remote
• Copies up to 4 remotes
• Compact keyring design
• Battery included
• Easy DIY setup
• Long operating range

Specifications

• Frequency: 433MHz
• Battery: 12V 27A (Included)
• Channels: 4
• Range: Up to 150m (Open Area)
• Material: ABS & Metal

Compatible Chip Types

Supports many fixed-code chips including:

PT2260, PT2262, PT2264, PT2292, EV1527, SC5262, HT600, HT680, HT6010, HT6012, HT6014, HT6026, HT6207, HT640, 2240, 527, 1527, 1416, 5211 and other compatible fixed-code transmitters.

Important

Your original remote must:

• Be fully operational
• Operate on 433MHz
• Use a compatible fixed-code chip

This remote is not compatible with every garage door or gate system.

Please check compatibility carefully before purchasing. If you are unsure, contact us with clear photos of your existing remote and we will help determine suitability.

No Returns Policy

Due to the technical nature of this product and the wide variety of remote systems available, this item is sold on a compatibility-check basis.

No returns, refunds or exchanges are available for incorrect purchases, compatibility issues, programming issues, change of mind, or failure to verify suitability before ordering.

Please contact us before purchasing if you are unsure whether this remote will work with your system.

Package Includes

• 1 x Universal 433MHz Remote Duplicator
• 1 x Battery
• 1 x Keyring Clip
• Programming Instructions

• How To Clone Your Existing Remote

  Step 1 – Clear The New Remote

  Before programming, clear any existing codes from the new remote.

  1. Press and hold buttons A + B together.
  2. After approximately 5-10 seconds the LED will begin flashing rapidly.
  3. Release both buttons.
  4. The remote memory is now cleared.

  Step 2 – Copy Your Existing Remote

  1. Hold the original remote and the new remote side-by-side, touching if possible.
  2. Press and hold the button on the original remote you wish to copy.
  3. At the same time, press and hold the corresponding button on the new remote.
  4. Continue holding both buttons until the LED on the new remote changes from a slow flash to a rapid flash.
  5. Release both buttons.
  6. The code has now been successfully copied.

  Repeat this process for any additional buttons.

  Step 3 – Test The Remote

  Stand near your garage door, gate or device and test the newly programmed button.

  If the remote operates the device correctly, programming is complete.

  Restore Accidentally Deleted Codes

  If you accidentally clear the remote:

  1. Press and hold buttons C + D together.
  2. Hold for approximately 5 seconds.
  3. The LED will flash several times.
  4. Previously copied codes may be restored.

  Important

  This remote can only copy compatible 433MHz fixed-code remotes.

  It is not compatible with most modern rolling-code garage door systems.

  If you are unsure whether your remote can be copied, please contact us with photos of your existing remote and we will be happy to help.
