Garage door bottom cable bracket

Sectional Garage Door Bottom Lift Brackets (Pair)

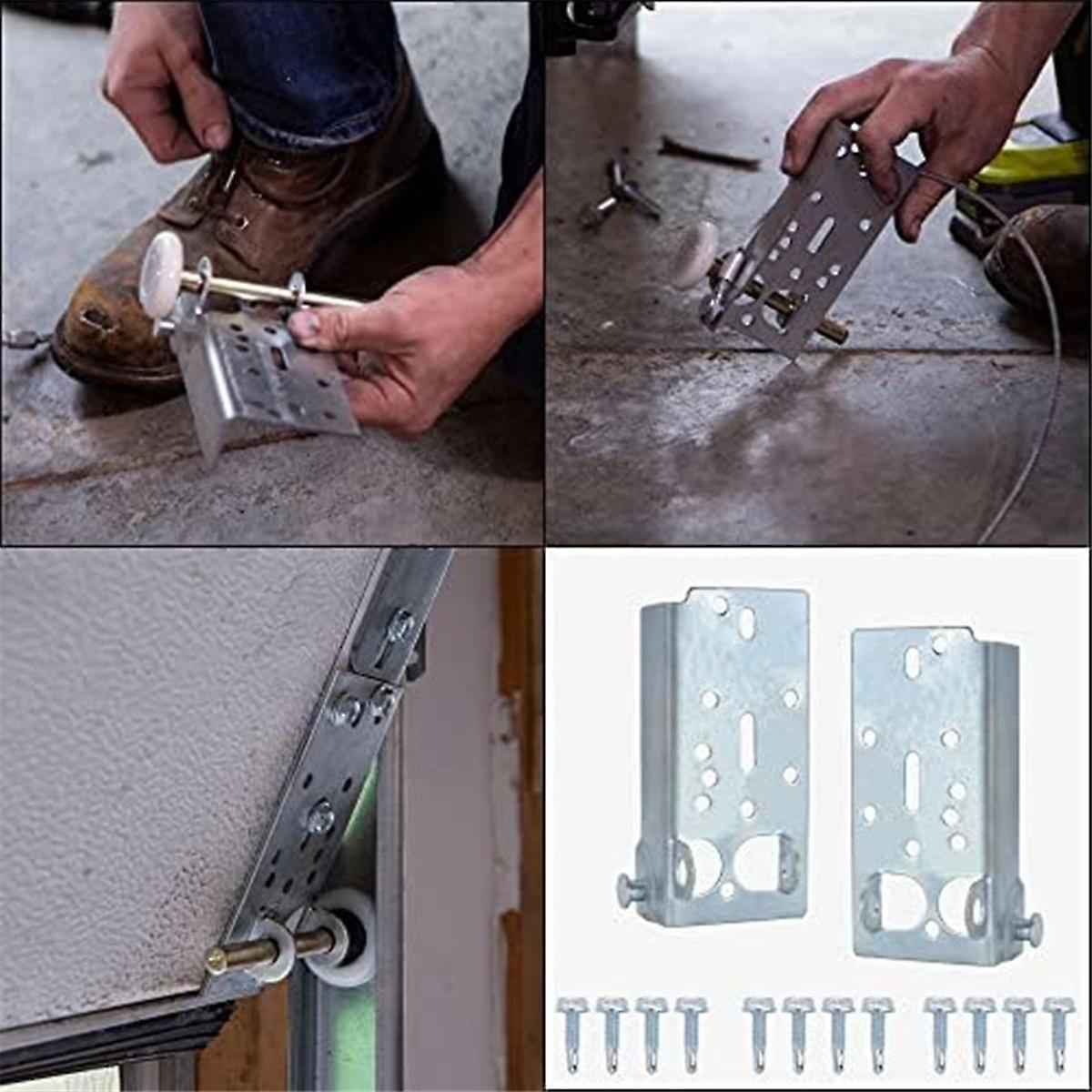

Heavy-duty bottom lift brackets designed for sectional garage doors. These brackets mount to the bottom panel and connect the lift cable to the torsion spring system, allowing controlled and balanced door operation

Function

The lift cable attaches to the side pin of the bracket. As the torsion spring applies tension, the bracket transfers that force to raise and lower the door smoothly and evenly.

Applications

Suitable for:

• Wooden sectional doors
• Fibreglass sectional doors
• Aluminium panel sectional doors
• Residential and light commercial installations

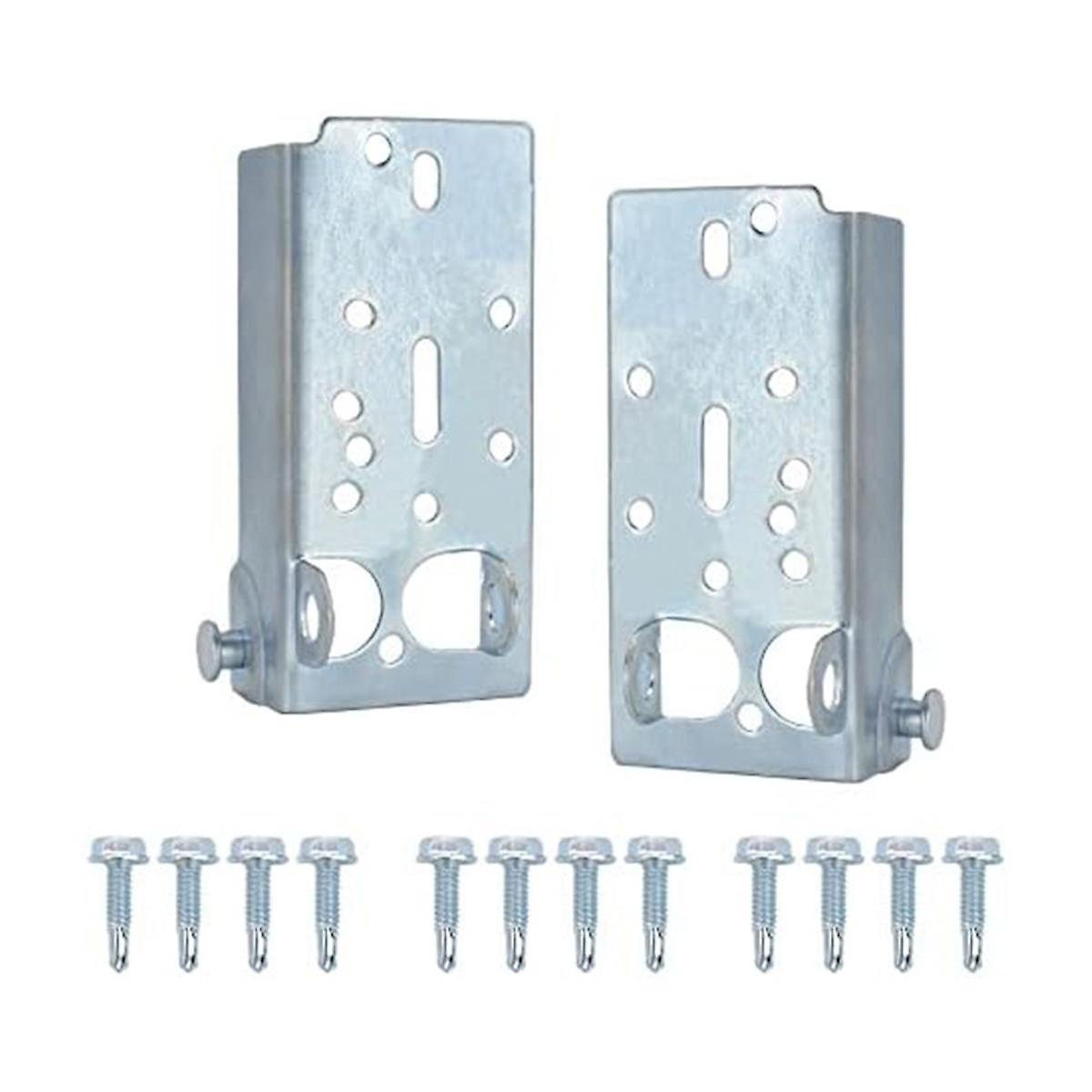

What’s Included

• 1 x Left Bottom Bracket
• 1 x Right Bottom Bracket
• Mounting screws

(Sold as a complete left & right pair

⚠️ Important Safety Notice

DOOR AND CABLES MUST NOT BE UNDER ANY SPRING TENSION WHEN REPLACING BRACKETS.

Failure to release tension before removal can result in serious injury. Professional installation is recommended.
