COMPLETE GARAGE DOOR BOTTOM SEAL KIT

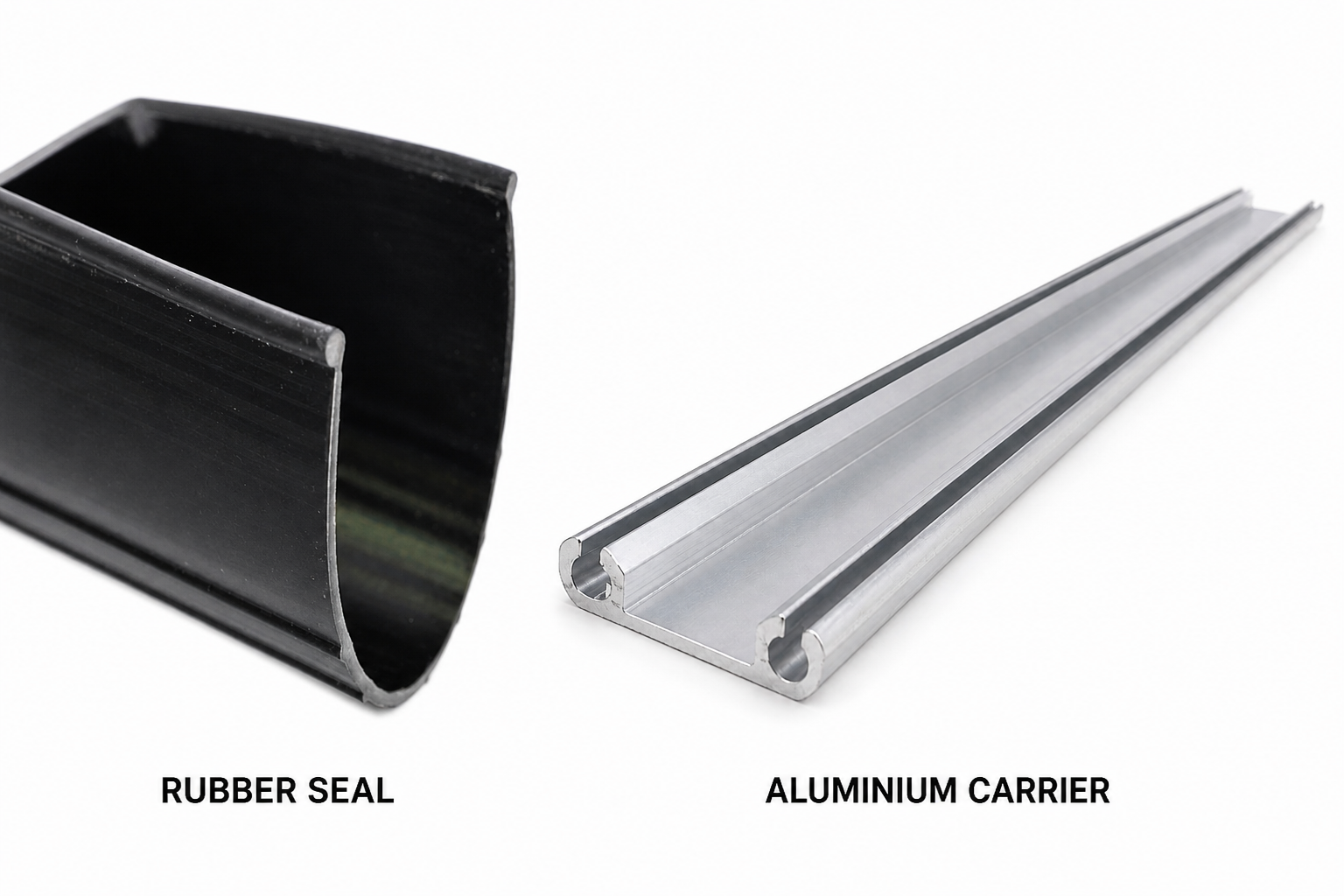

RUBBER SEAL + ALUMINIUM CARRIER

A complete bottom sealing system for compatible roller and sectional garage doors.

This kit includes both the flexible rubber seal and the aluminium carrier, giving you everything required to replace a missing, damaged or unsuitable garage door bottom seal system.

The rubber seal is supplied in one continuous length. The aluminium carrier is supplied in manageable 1.5-metre sections for convenient nationwide delivery.

---

WHAT DOES THIS KIT HELP WITH?

A properly fitted bottom seal helps reduce:

• Water entering underneath the garage door
• Cold air and draughts
• Dust and dirt
• Leaves and outdoor debris
• Insects and small pests
• Light showing underneath the door
• Gaps caused by minor variations in the concrete floor

Performance will depend on the condition and alignment of the garage door, the mounting position and the level of the garage floor.

---

WHAT IS INCLUDED?

Every kit includes:

• Universal flexible garage door bottom rubber seal
• Aluminium bottom seal carrier
• Enough seal and carrier to cover your selected width
• Rubber seal supplied in one continuous length
• Aluminium carrier supplied in 1.5-metre sections

PLEASE NOTE: Mounting screws and pop rivets are not included because the correct fixings depend on the material and construction of your garage door.

---

CHOOSE YOUR KIT SIZE

1.5 METRE KIT

Suitable for small doors, sheds, repairs and custom applications.

Includes:

• 1 × 1.5m aluminium carrier
• 1 × continuous 1.5m rubber seal

3 METRE KIT

Commonly suitable for smaller single garage doors.

Includes:

• 2 × 1.5m aluminium carrier sections
• 1 × continuous 3m rubber seal

4.5 METRE KIT

Suitable for oversized single doors and smaller double doors.

Includes:

• 3 × 1.5m aluminium carrier sections
• 1 × continuous 4.5m rubber seal

6 METRE KIT

Commonly suitable for standard double garage doors.

Includes:

• 4 × 1.5m aluminium carrier sections
• 1 × continuous 6m rubber seal

Larger kit sizes provide better value per metre—the more you buy, the more you save.

Always measure the complete width of your garage door before ordering. If your door falls between two available sizes, select the next size up and trim the materials to fit.

---

WILL THIS KIT FIT MY GARAGE DOOR?

This kit is designed for most compatible:

• Roller garage doors
• Sectional or panel garage doors
• Residential garage doors
• Light-commercial garage doors
• Doors without an existing bottom carrier
• Doors with damaged or unsuitable bottom carriers

It is compatible with many common New Zealand garage door brands, including B&D, Garador, Dominator, PGD, Nu-Style, Sovereign and others—provided the bottom of the door meets the mounting requirements.

Compatibility is determined by the shape and measurements of the bottom of your door, not the brand name alone.

---

CHECK YOUR DOOR BEFORE ORDERING

The aluminium carrier is approximately 25mm wide and must be fixed to a flat surface along the bottom of the garage door.

Before ordering, check that your door has:

• Approximately 15–25mm of flat mounting surface
• A suitable surface for screws or pop rivets
• Enough clearance for the carrier and hanging rubber seal
• A straight and structurally sound bottom edge

Please compare the bottom of your door with the product photographs and specifications.

If you are unsure, contact us before ordering and send clear photographs and measurements of the bottom of your garage door.

---

PRODUCT SPECIFICATIONS

• Kit type: Complete rubber seal and aluminium carrier system
• Suitable doors: Compatible roller and sectional garage doors
• Rubber seal width: Approximately 61mm when laid flat
• Approximate gap coverage: 30–45mm
• Carrier material: Corrosion-resistant aluminium
• Carrier width: Approximately 25mm
• Carrier section length: 1.5 metres
• Available kit lengths: 1.5m, 3m, 4.5m and 6m
• Installation method: Screw-on or pop-riveted carrier with slide-in rubber seal
• Rubber seal format: One continuous length for your selected kit size

Gap coverage is approximate and will vary depending on the mounting position, door design and floor level.

---

WHY CHOOSE THE COMPLETE KIT?

This complete system is ideal when:

• Your garage door has no existing bottom carrier
• The original carrier is damaged, bent or missing
• You cannot find a replacement seal that fits the existing track
• The old rubber seal is cracked, torn, flattened or missing
• Water, dust, leaves or draughts are entering the garage
• You want to replace the complete bottom sealing system
• Your existing T-slot or round-bead seal is difficult to identify or replace

The universal seal and matching aluminium carrier remove the need to find an exact replacement for your original seal profile.

---

INSTALLATION INSTRUCTIONS

STEP 1 – SECURE THE DOOR

Secure the garage door before beginning installation.

STEP 2 – REMOVE THE OLD SYSTEM

Remove the existing rubber seal and damaged carrier, if fitted.

STEP 3 – MEASURE THE CARRIER

Measure the full width of the door and trim the aluminium carrier sections if required.

STEP 4 – MOUNT THE CARRIER

Position the carrier along the bottom of the door and fix it using screws or pop rivets suitable for your door material.

STEP 5 – ALIGN THE JOINS

Join multiple carrier sections end-to-end. Carefully align the internal channels so the rubber seal can pass smoothly through each join.

STEP 6 – INSERT THE RUBBER SEAL

Slide the continuous rubber seal through the aluminium carrier.

A small amount of silicone lubricant or soapy water can help the rubber slide through the carrier. Avoid petroleum-based oils, as these may damage some rubber materials.

STEP 7 – TRIM AND SECURE

Trim the rubber seal to the finished width. Lightly crimp or secure both ends to help prevent the seal from moving or shrinking.

---

IMPORTANT SAFETY INFORMATION

Do not adjust or interfere with garage door springs, lifting cables or counterbalance components during installation.

If your garage door is damaged, unbalanced, difficult to operate or has broken components, contact a qualified garage door technician before installing the seal system.

---

ONLY NEED ONE PART?

We also sell the components separately:

RUBBER SEAL ONLY

Choose this option if your existing aluminium carrier is still in good condition and is compatible with our rubber seal.

ALUMINIUM CARRIER ONLY

Choose this option if you already have suitable rubber seal and only need the aluminium mounting carrier.

Please see our other listings for the seal-only and carrier-only options.

---

QUICK ORDERING GUIDE

Before placing your order:

1. Measure the full width of your garage door.

2. Check that the bottom of the door has a suitable flat mounting surface.

3. Select a kit equal to or longer than your measured door width.

4. Check for brackets, guides or fittings that could affect installation.

5. Trim the aluminium carrier and rubber seal to the required finished size.

6. Contact us before ordering if you are unsure about compatibility.

---

NZ STOCK AND FAST DISPATCH

• Stocked in Manawatū–Horowhenua
• Ships nationwide throughout New Zealand
• Usually dispatched within 1–2 business days
• Suitable for DIY installation or professional fitting

A practical, complete garage door bottom sealing system supplied with the rubber seal and aluminium carrier together—ready to measure, install and trim to size.
