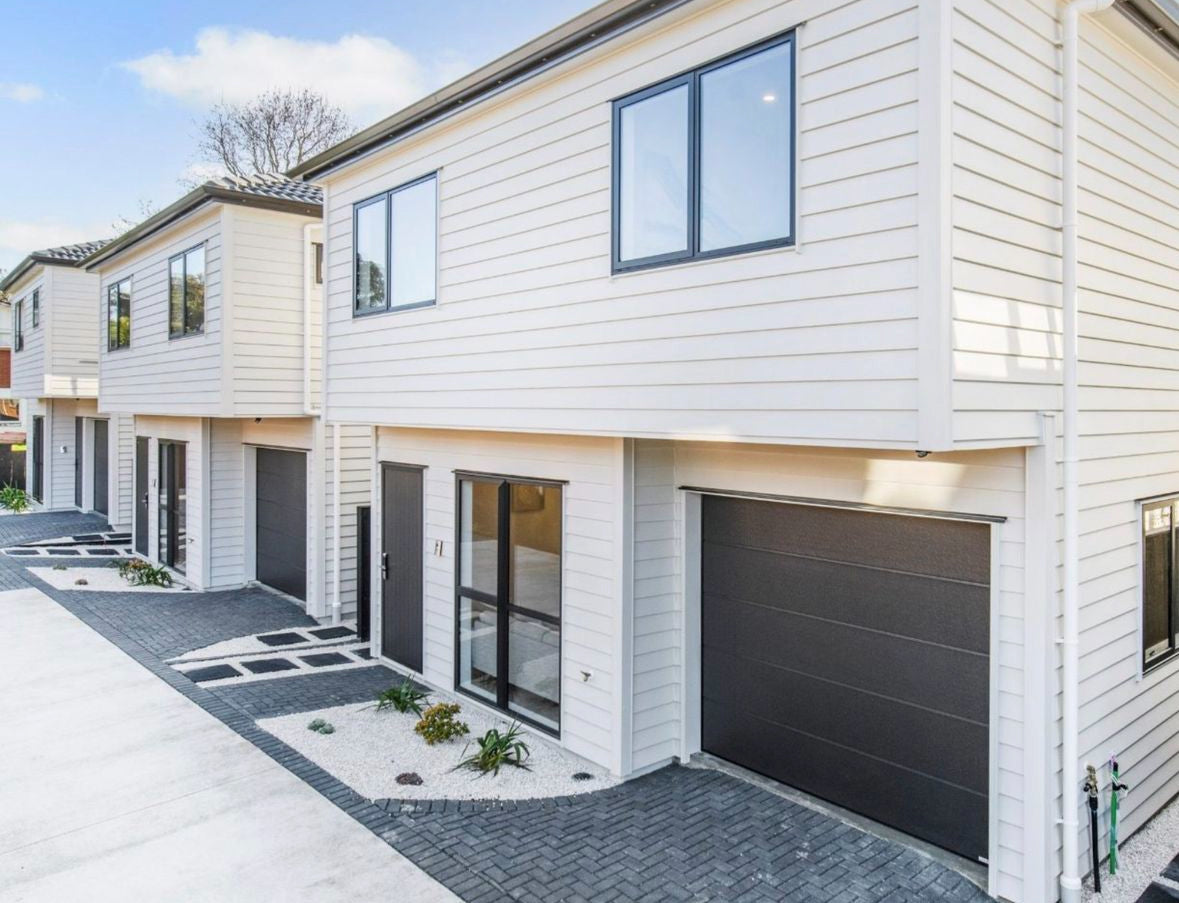

PGD Premium Insulated Sectional Garage Door – Single

A premium insulated sectional garage door, custom-made to suit your opening and supplied as a complete package with tracks, hardware and weather seals included.

Ordering is simple – choose your door height, select your colour and panel finish, and add a garage door motor if required.

Choose Your Door Size

This product is for garage doors up to 2700mm wide.

Choose the height that suits your opening:

• Up to 2100mm high – up to 2700mm wide
• Up to 2200mm high – up to 2700mm wide
• Up to 2400mm high – up to 2700mm wide

Your door will be custom-made to suit the exact opening measurements you provide.

Example: If your opening is 2050mm high x 2500mm wide, choose the Up to 2100mm High option.

Is Your Door Wider Than 2700mm?

If your opening is over 2700mm wide, please use our 2700mm–5400mm wide sectional garage door listing instead.

Not sure which size you need? Send us your opening width and height and our team will confirm the correct option.

Choose Your Panel Finish

Flat Embossed – Standard

Our standard door features a wide flat panel design with a subtle embossed texture.

This provides a clean, modern appearance while the light texture adds durability and helps maintain a consistent exterior finish.

Flat Embossed is included in the standard door price.

Fully Smooth – Premium Upgrade

For an even cleaner architectural appearance, you can upgrade to our fully smooth panel profile at additional cost.

The smooth option removes the embossed texture, creating a sleek, uninterrupted finish across the face of the door.

Simply select the Smooth Panel Upgrade when configuring your door.

Choose Your Colour

Choose from the full Resene colour range to complement your home.

Your door is professionally finished using our Lechler 2K polyurethane paint system, providing a durable, premium exterior finish with excellent UV and salt resistance for New Zealand conditions.

The inside of the door comes standard in a clean smooth white powder-coated finish.

What's Included?

Every PGD Premium sectional door is supplied as a complete garage door package.

Included as standard:

• Premium insulated sectional door panels
• Complete track system
• Springs and lifting system
• Heavy-duty galvanised hinges and brackets
• Nylon-coated rollers for smooth, quiet operation
• Lift cables
• Mounting hardware and fixings
• High-compression side weather seals
• High-compression top weather seal
• Flexible bottom rubber weather seal
• All required hardware and door fittings

You receive the complete garage door package – not just the panels.

Premium Insulated Construction

Our doors are manufactured using premium 40mm insulated panels with a high-density polyurethane Thermo-Core.

The insulation is enclosed between two steel skins, creating a strong and rigid garage door that provides improved thermal performance, reduced noise and a solid, premium feel.

Panels feature an interlocking tongue-and-groove design with a thermal break, helping reduce heat transfer between the exterior and interior surfaces.

The interior face of the panels has a clean, smooth white finish.

Our sectional doors are also designed and tested for New Zealand extra-high wind zones.

Tested Thermal Performance

The insulated panel has been thermally tested at a mean temperature of 15°C for the New Zealand product.

• R-value: 1.77 m²K/W
• Thermal Conductivity: 0.0217 W/mK
• Panel Thickness: 40mm
• Insulation: High-density polyurethane Thermo-Core

This high level of insulation helps reduce heat transfer through the garage door, making it particularly beneficial for attached garages, workshops, home gyms and garages used as additional living or working spaces.

Add a Garage Door Motor

Your new door can be supplied with or without a garage door opener.

If you're replacing an existing garage door and already have a suitable motor, you may not need a new one.

If you want a complete automated setup, simply add a motor to your order. Additional remotes, Wi-Fi control and other garage door accessories are also available.

Trade & Garage Door Companies

For garage door companies and trade customers, we offer exclusive trade pricing across our sectional garage door range.

Please contact us directly for trade pricing and supply options.

Installation & New Zealand-Wide Delivery

Horowhenua, Manawatū & Wellington

Professional installation is available directly through Premium Garage Doors.

Rest of New Zealand

We can professionally package and freight your complete garage door throughout New Zealand.

We also work with dedicated garage door installers around the country and can assist with installation options depending on your location.

Before Ordering

Please have your garage door opening width and height available when ordering.

If you're unsure about the correct size, measurements, headroom, sideroom, panel finish or motor, send us your measurements and our team can help confirm the correct setup before your door is prepared.

Premium Garage Doors
Premium insulated sectional garage doors • Custom sized • Custom colour • Complete door packages • NZ-wide supply
