DOUBLE-PREMIUM INSULATED FLAT PANEL WOODGRAIN EMBOSSED PROFILE SECTIONAL GARAGE DOOR. SUPPLY NZ WIDE
CURRENTLY LEAD TIMES ONLY 8 DAYS
Premium Sectional is the most high-end sectional garage door on the current market. Bursting with curb-side appeal and features this door has earned the badge for Premium style, quality, safety and superior overall operational noise thanks to the built in thermocore insulation
Whats included?
One Insulated premium panel door in wide flat panel embossed profile, Painted in ANY colour of your choice (please use the resene colour chart to ensure a perfect match)

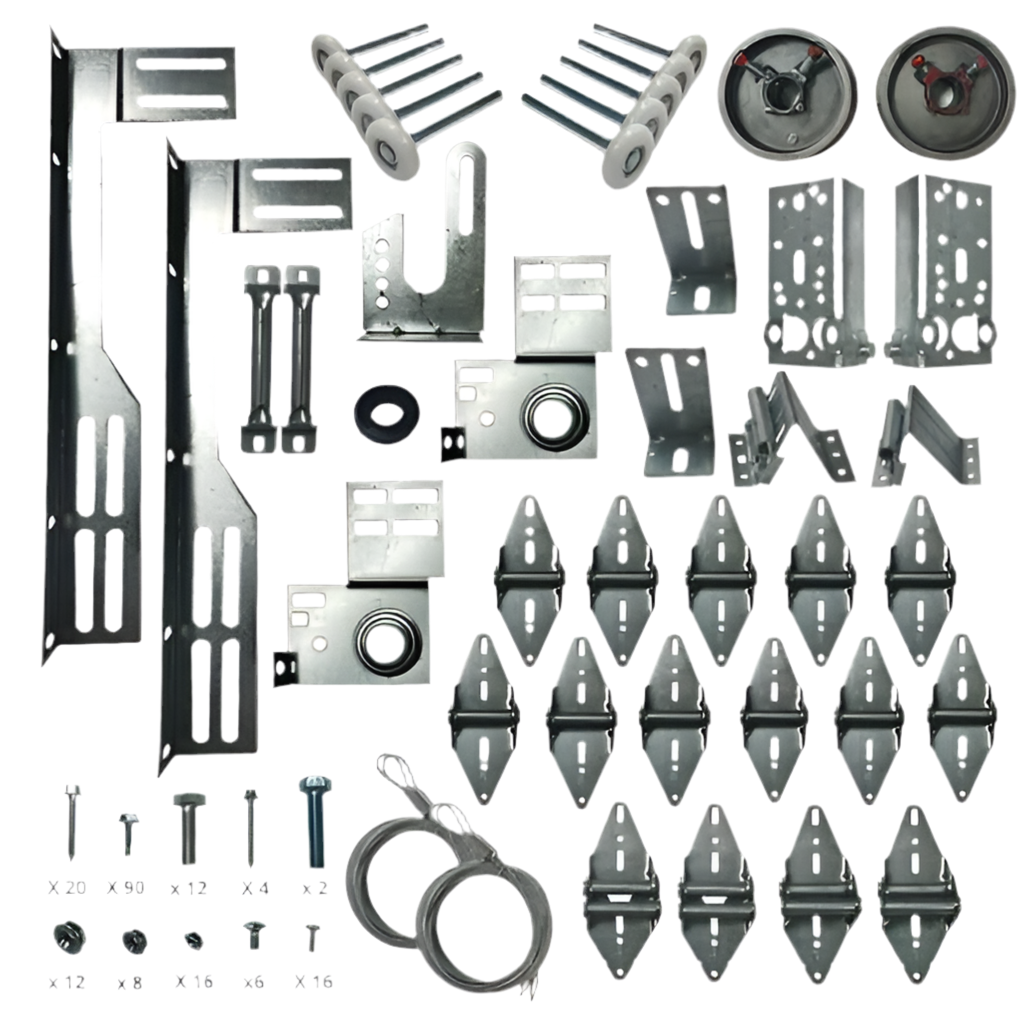

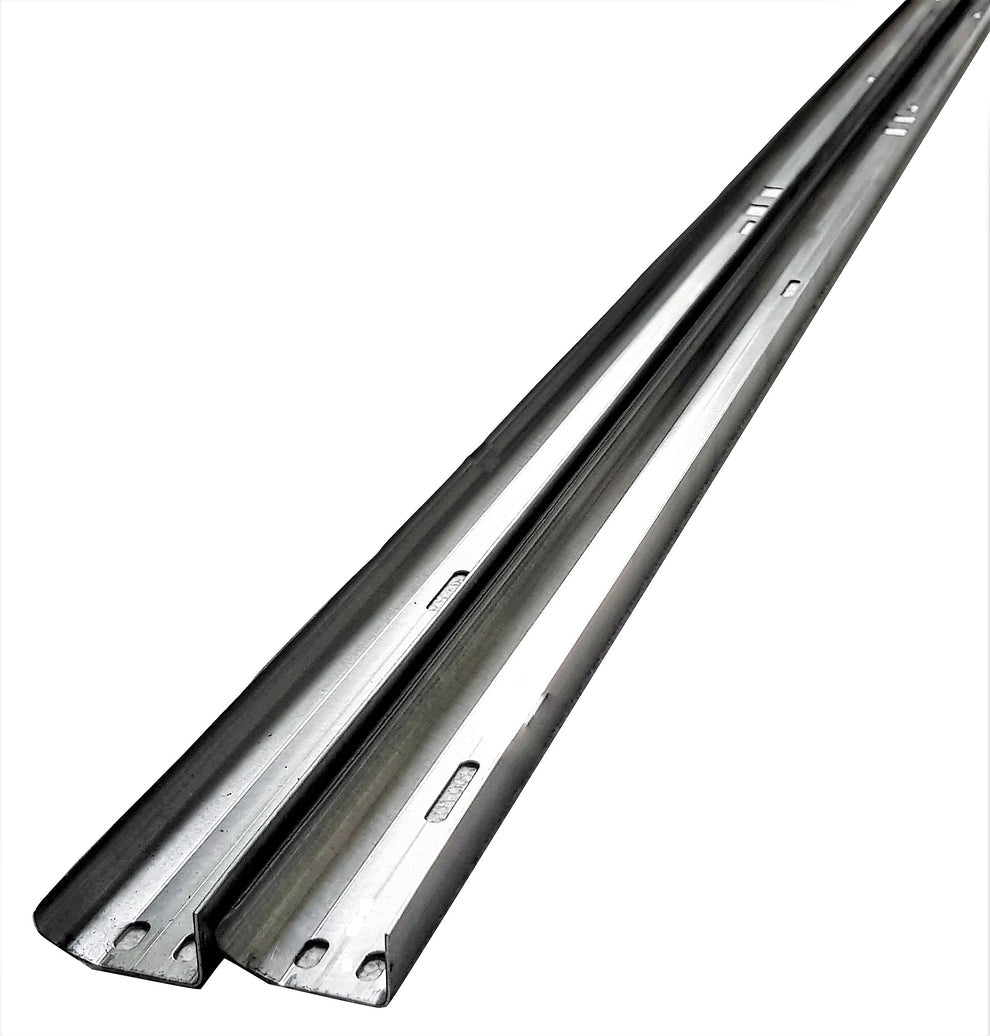

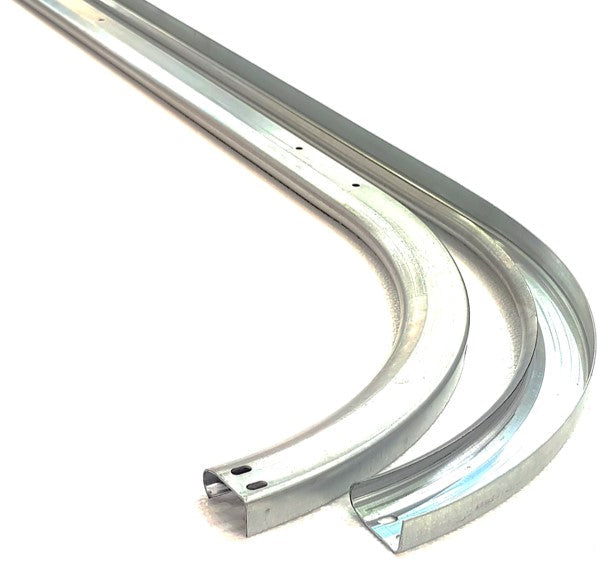

one hardware box fitting kit -one set of 360 degree weatherproof seals- one pair galvanised vertical tracks-one set galvanised horizontal tracks-one PGD Pro-SR series S1000N motor including x2 remotes and x1 wireless wall switch (if opener selected)
Sizing and Spec:Door listing heights are 2140h this will suit an opening door height between 2100-2130h and 2220h will suit an opening height of 2190h-2210h, custom choose your perfect width
Listed is several sizes of single doors to perfectly suit your opening. Not sure on size?
Here is an example of how to order: Your door opening or whats known as DLO/Day light opening is measured from the concrete or where the bottom of your door will sit to the top of the opening frame for the height. The width is measured from the frame left hand side to right hand side - measure this standing on the outside of the door.
IE: if your height and width measures 2.1M high x 2.4M wide you will require a door size of 2.14M high x 2.45M wide. Always add 50mm to your opening width this will give both sides an overlap of 25mm
Already have a door and your just wanting to replace?
Easy in this case measure your exact current door and match it closest to one of our listings. We are more that happy to make small custom modifications - we will need to know this once ordered

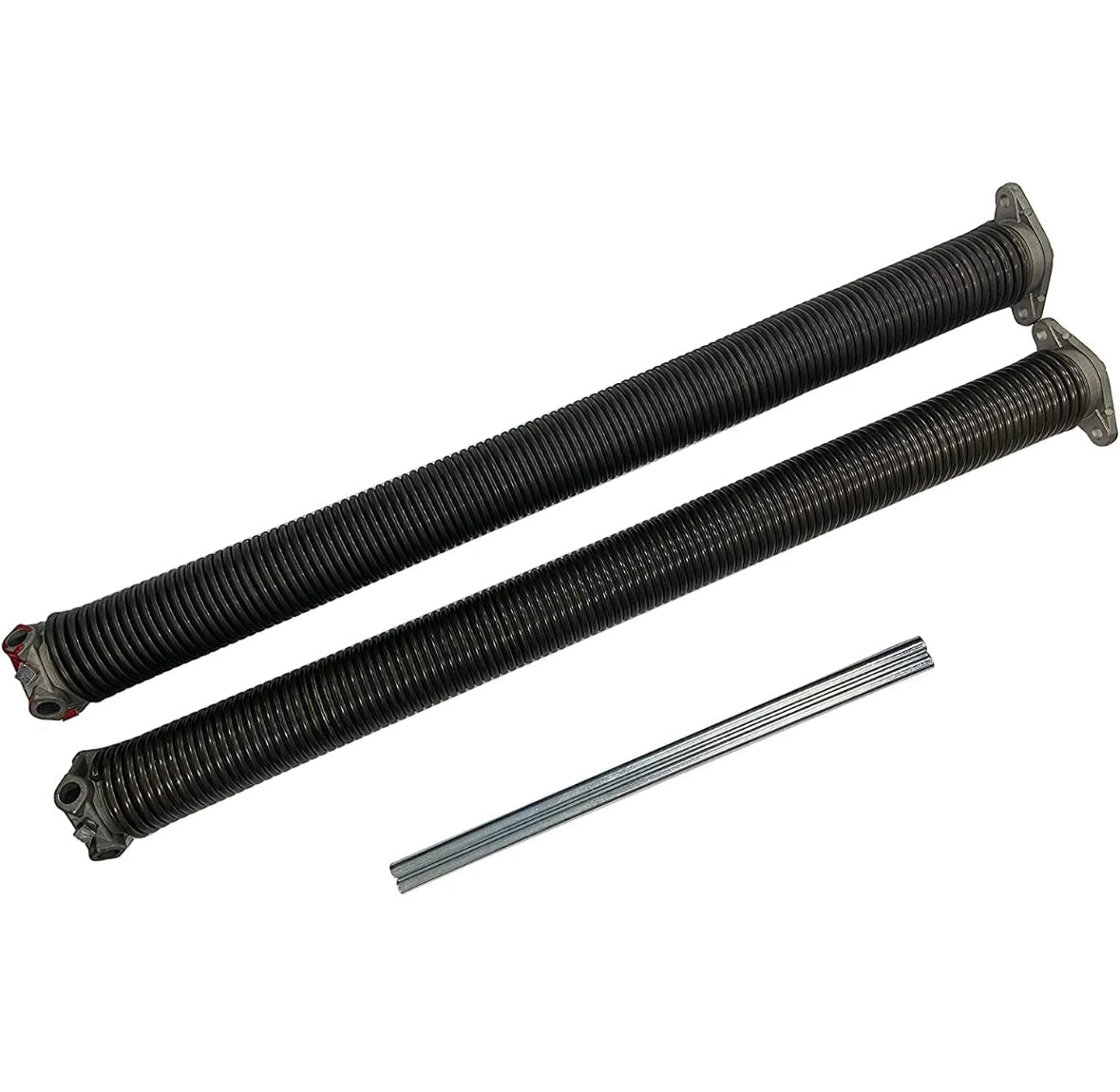

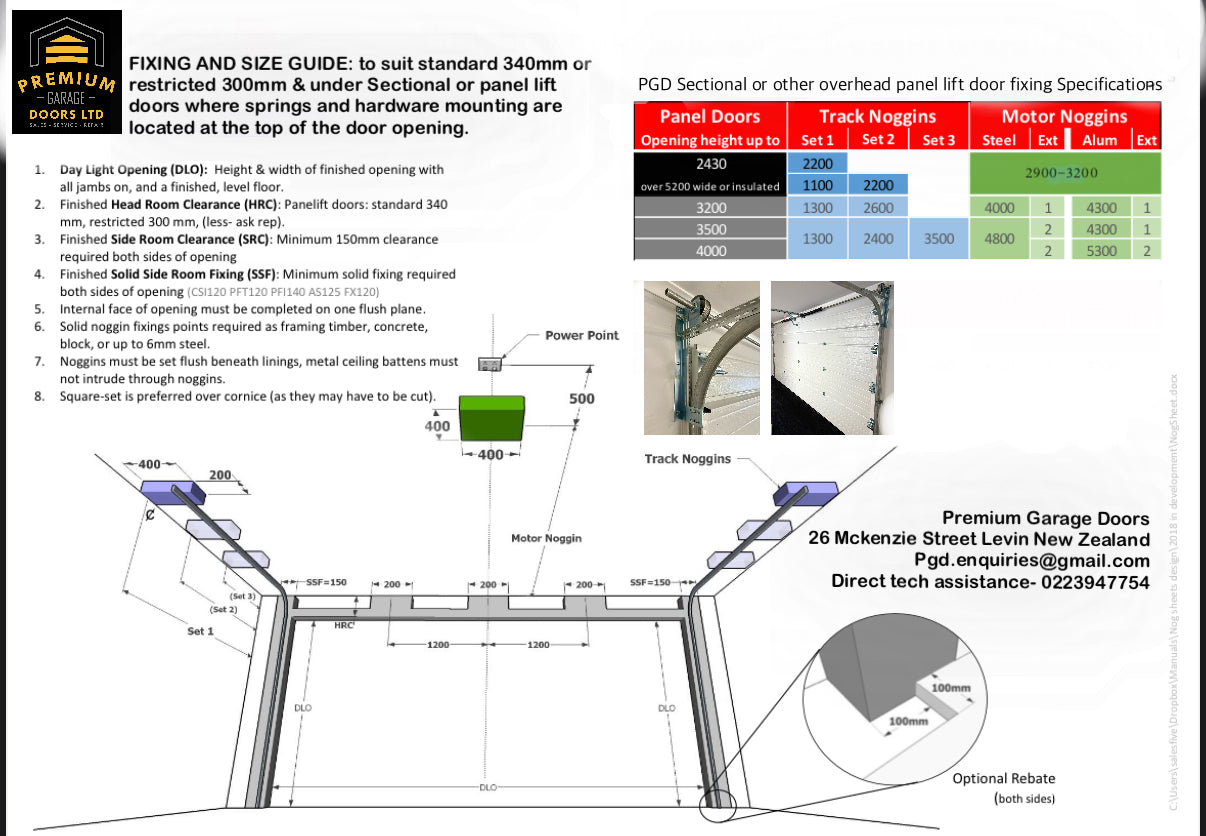

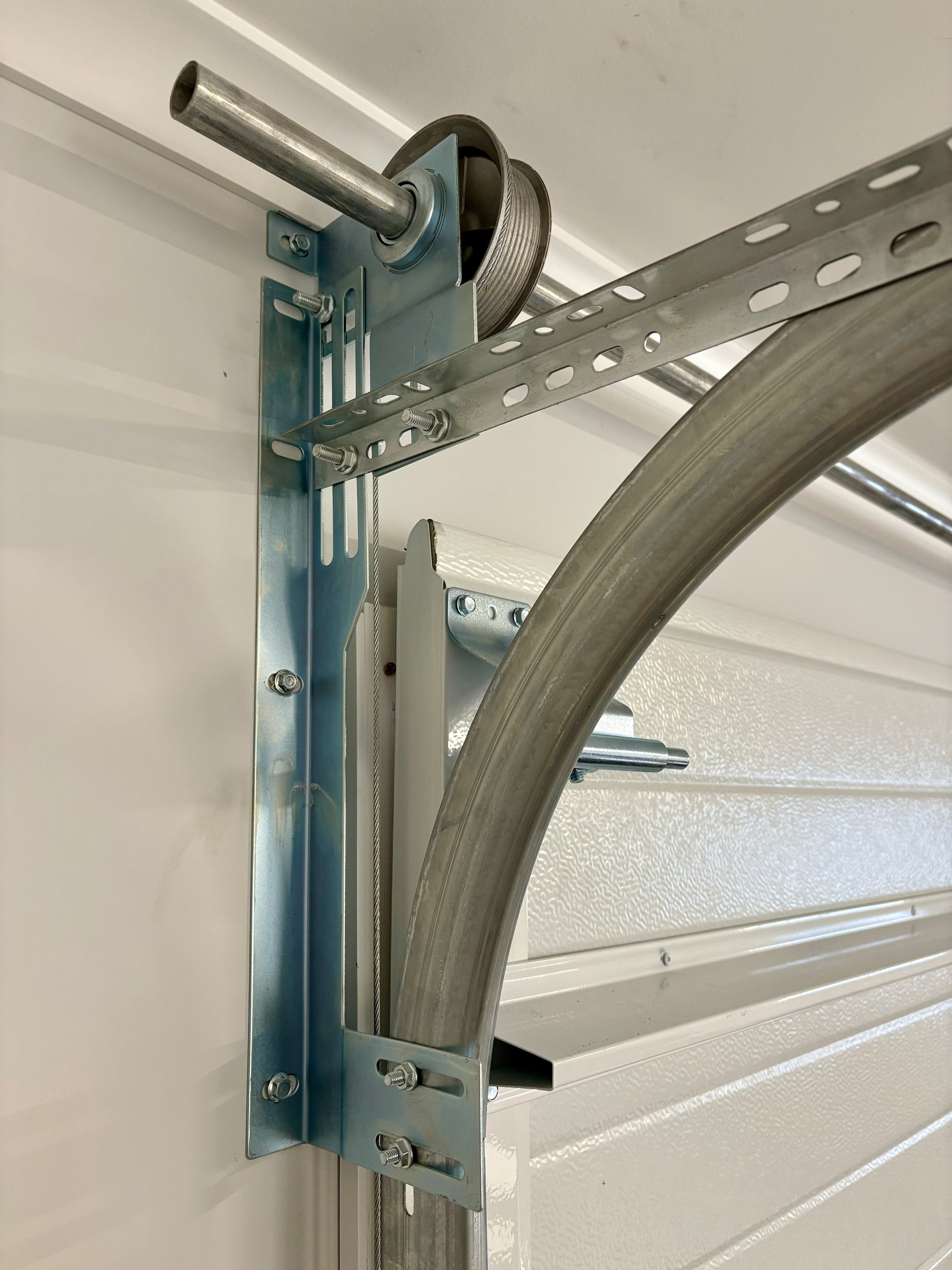

NOTE- From the top of your opening to your lowest ceiling point you must have 300mm of whats called headroom - The headroom of 300mm is where your pole and springs will sit
Door Description:

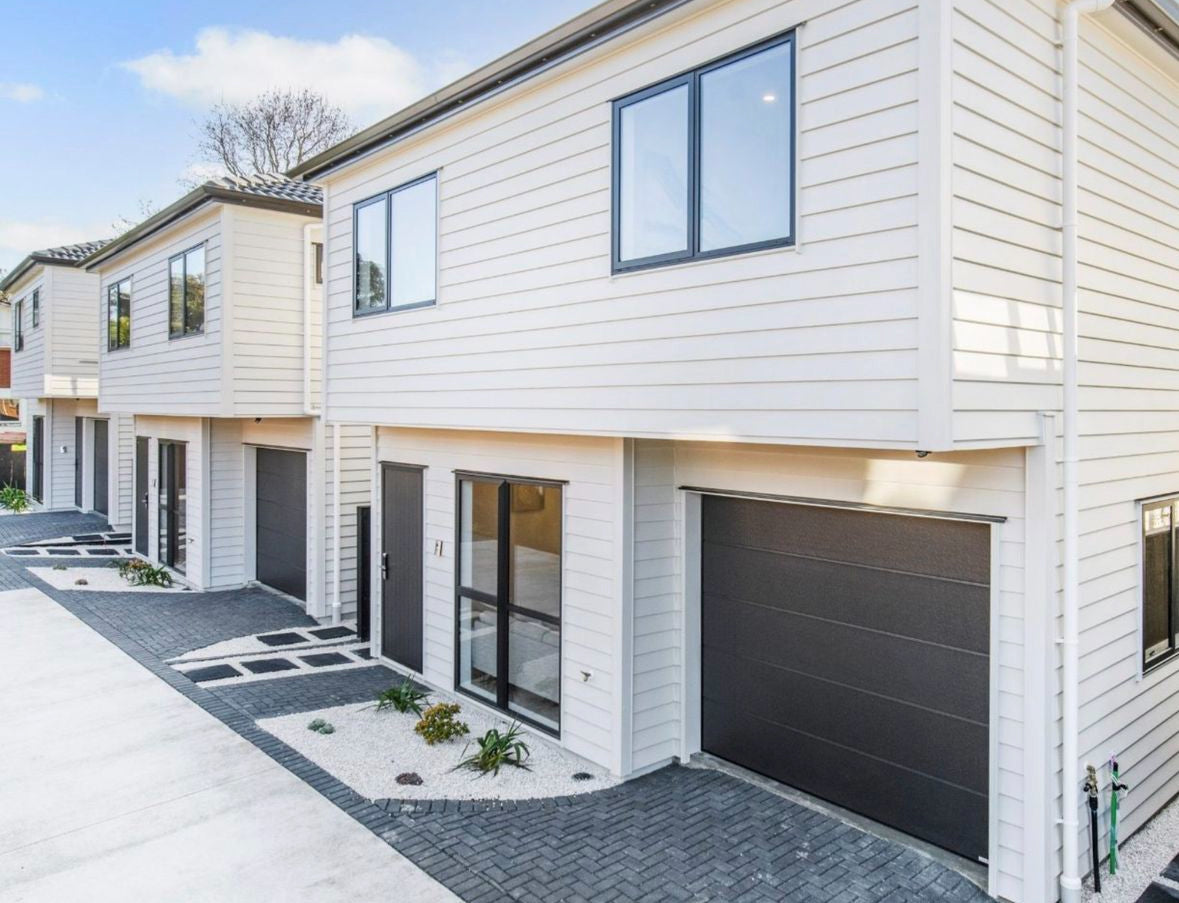

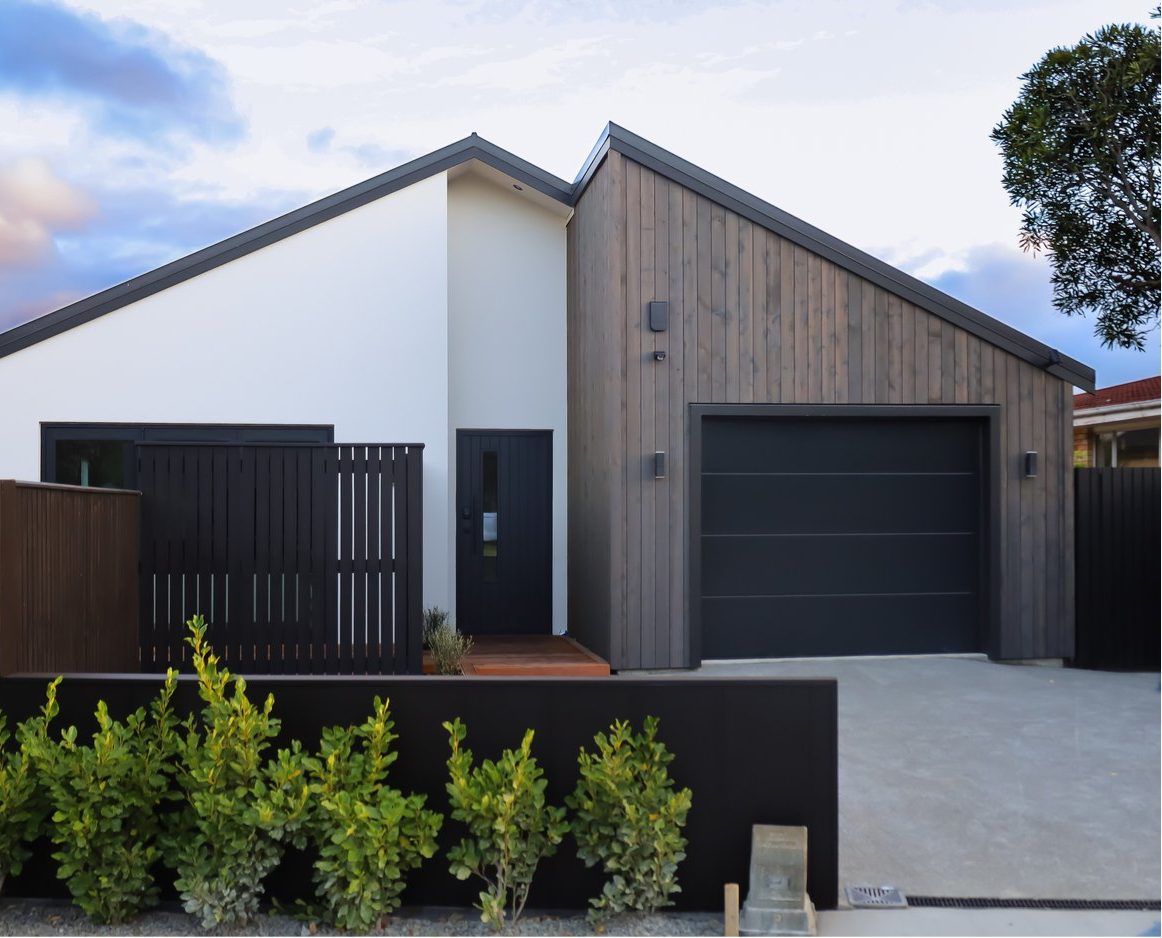

A wide, flat panel door with a textured finish. The Flatline Embossed is our most popular door because of the many suitable applications. The flatline embossed has the wood look without the maintenance of wood adding a modern look to any build or upgrade.
All Premium Range Doors come standard with a Weather Seal. The Weather Seal is applied to the top and side of the opening, providing an excellent seal against wind, rain and dust.
The pinch resistant design prevents fingers from being caught between panels during operation. The door join design almost eliminates water and weather penetration.
DOOR:
Single- Premium Insulated Range Sectional Door
one sectional Premium panels range door

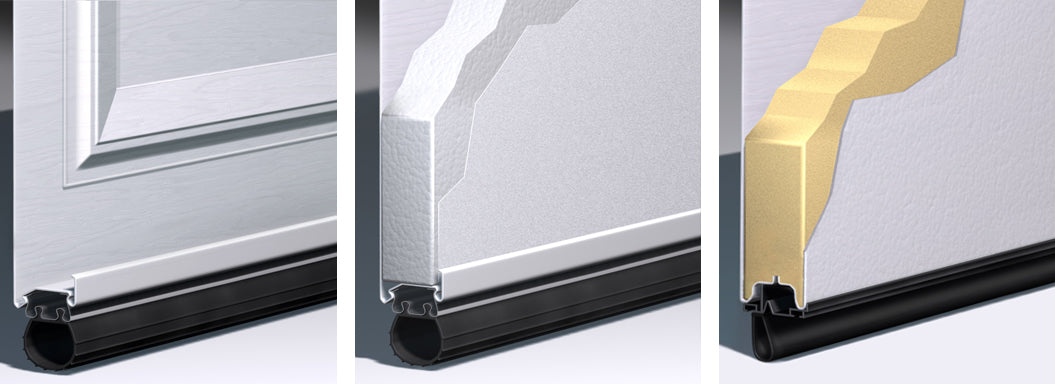

Built in Thermo core insulated panels.
DESIGN:
*Exterior profile Flat Embossed .70 double capped steel
*Interior view, white powder coated

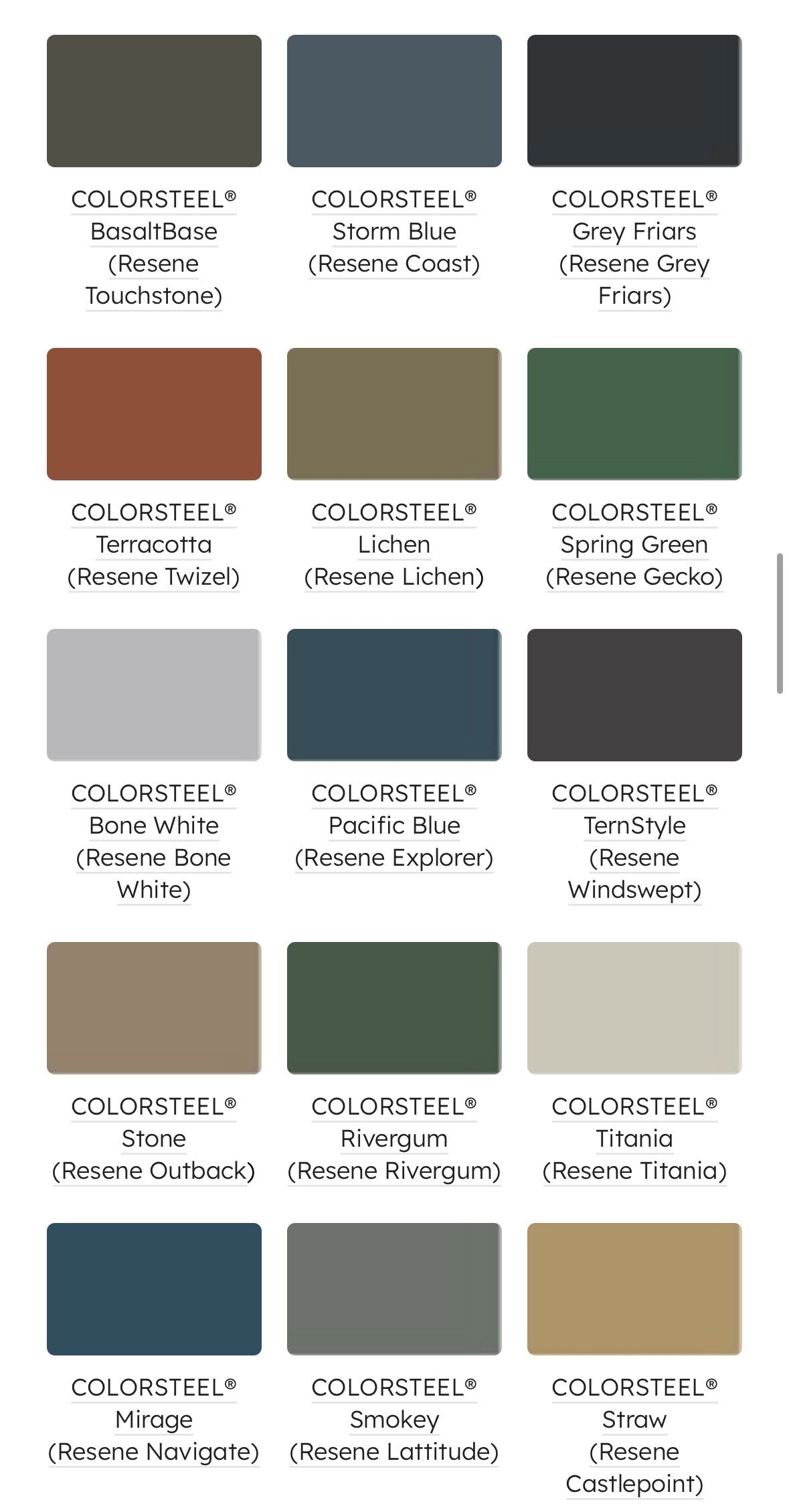

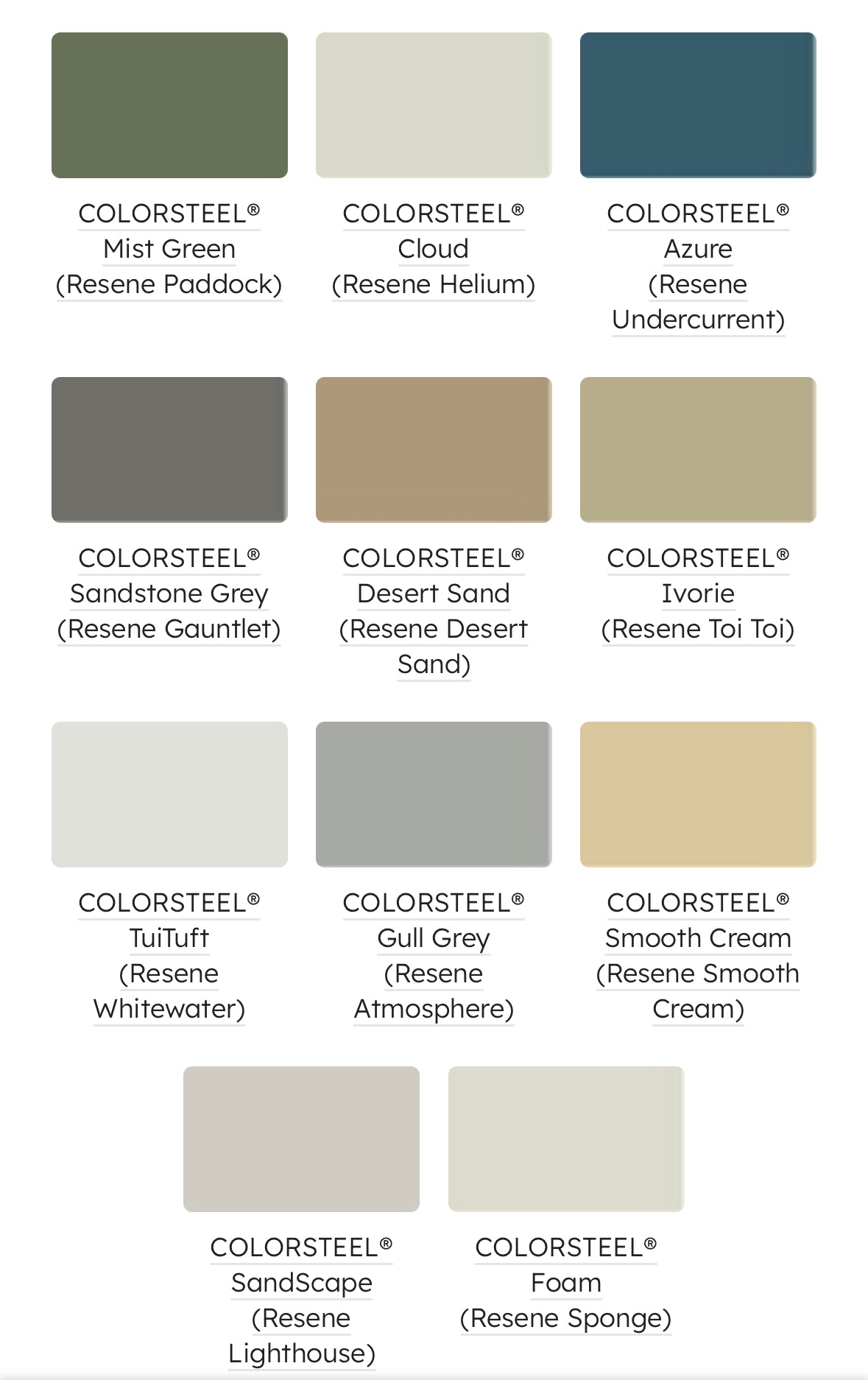

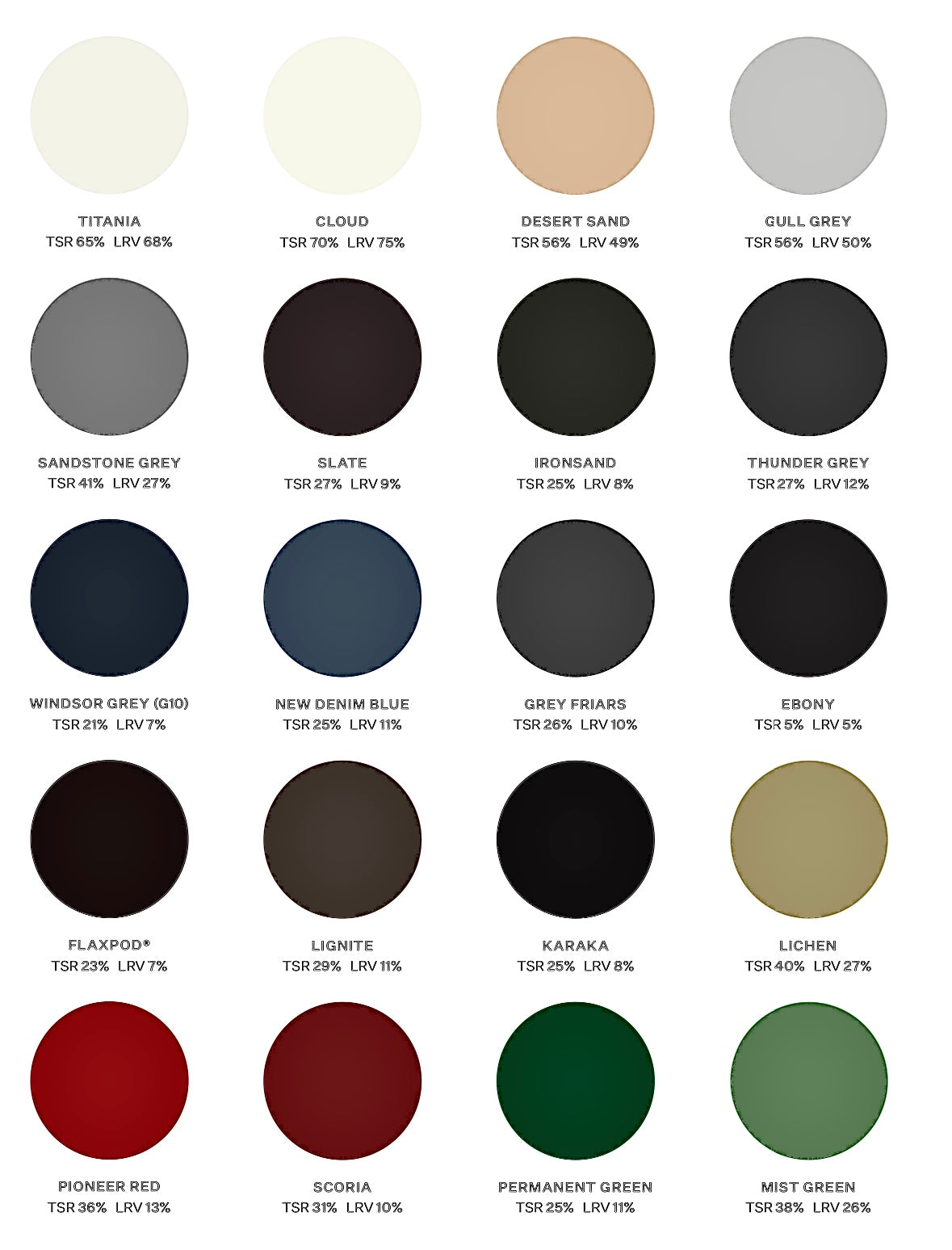

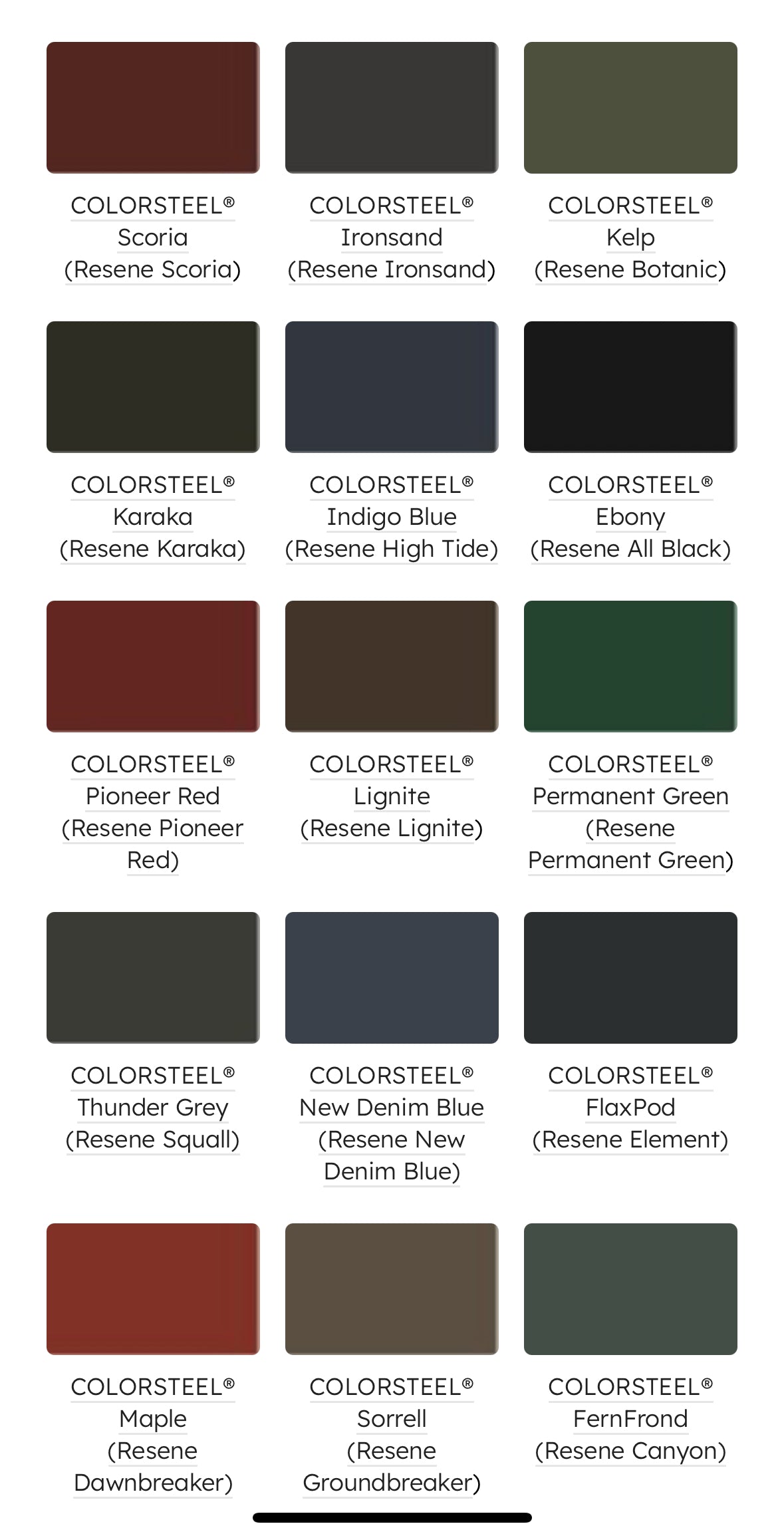

PAINT: Painted with marine grade 2 pot paint please use Resene colour chart when selecting colour for best quality.
NOT limited to any colour choice.
SEAL-Custom 360 degree weatherproof heavy duty rubber seal

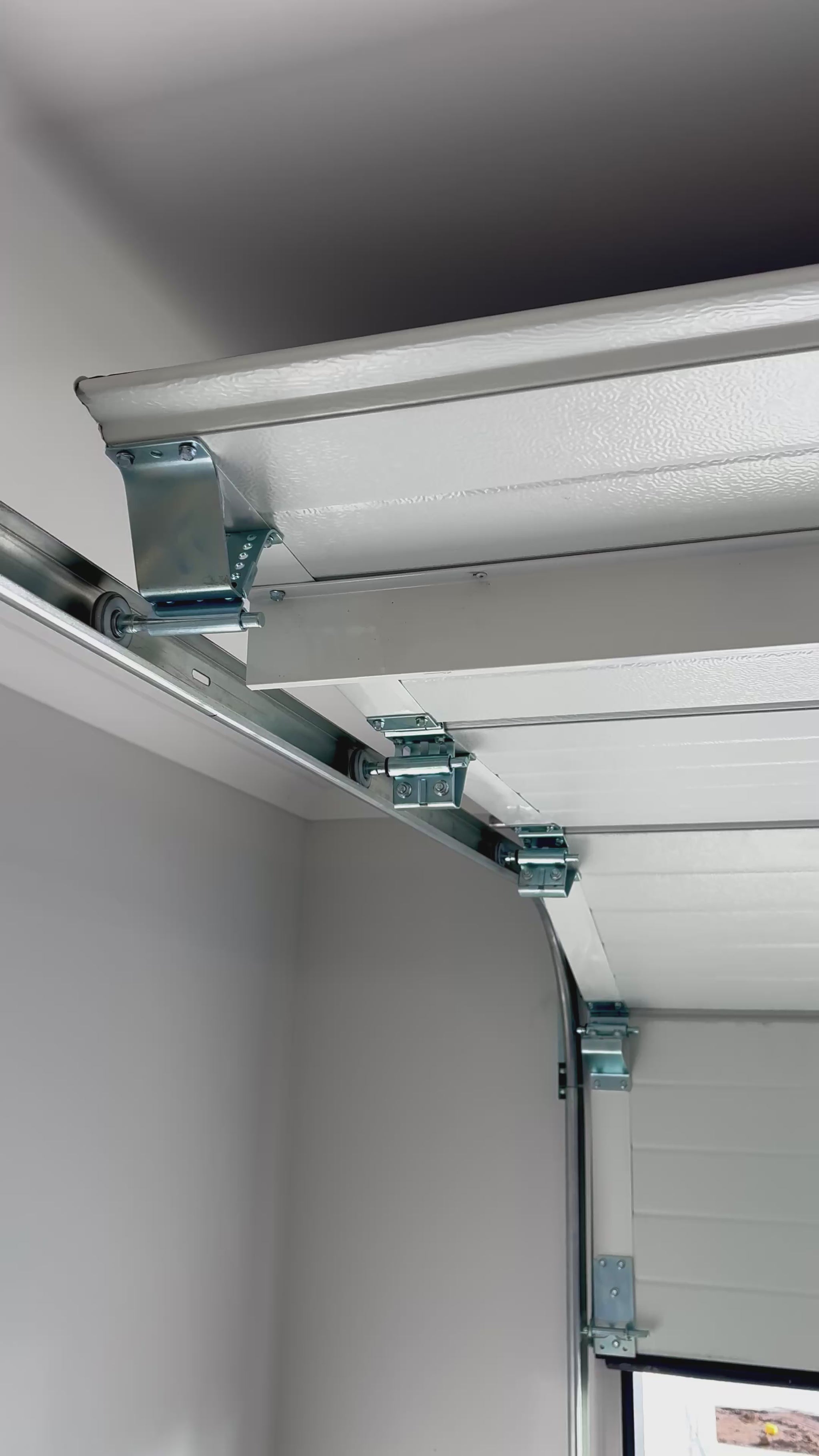

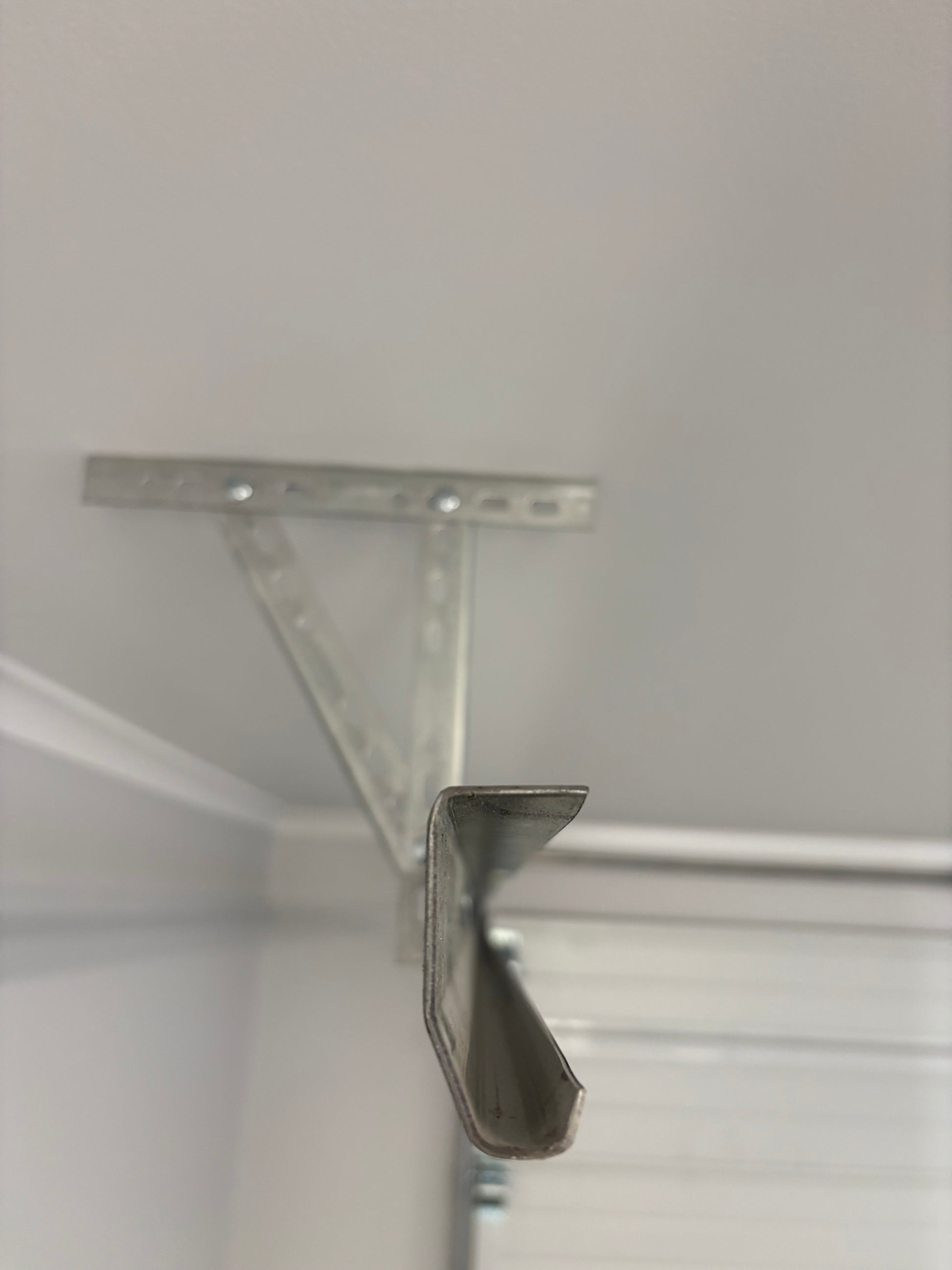

Low Head Room Tracks for headroom 300mm or under.
The Premium Range aids in reducing your energy cost. The thermally insulated core aids to reduce heating and cooling cost, meaning your “Garage” is just another cosy room of the home. Best of all – the fine textured finish inside means no more looking at a dull, grey, hollow backing as standard Sectional Doors.

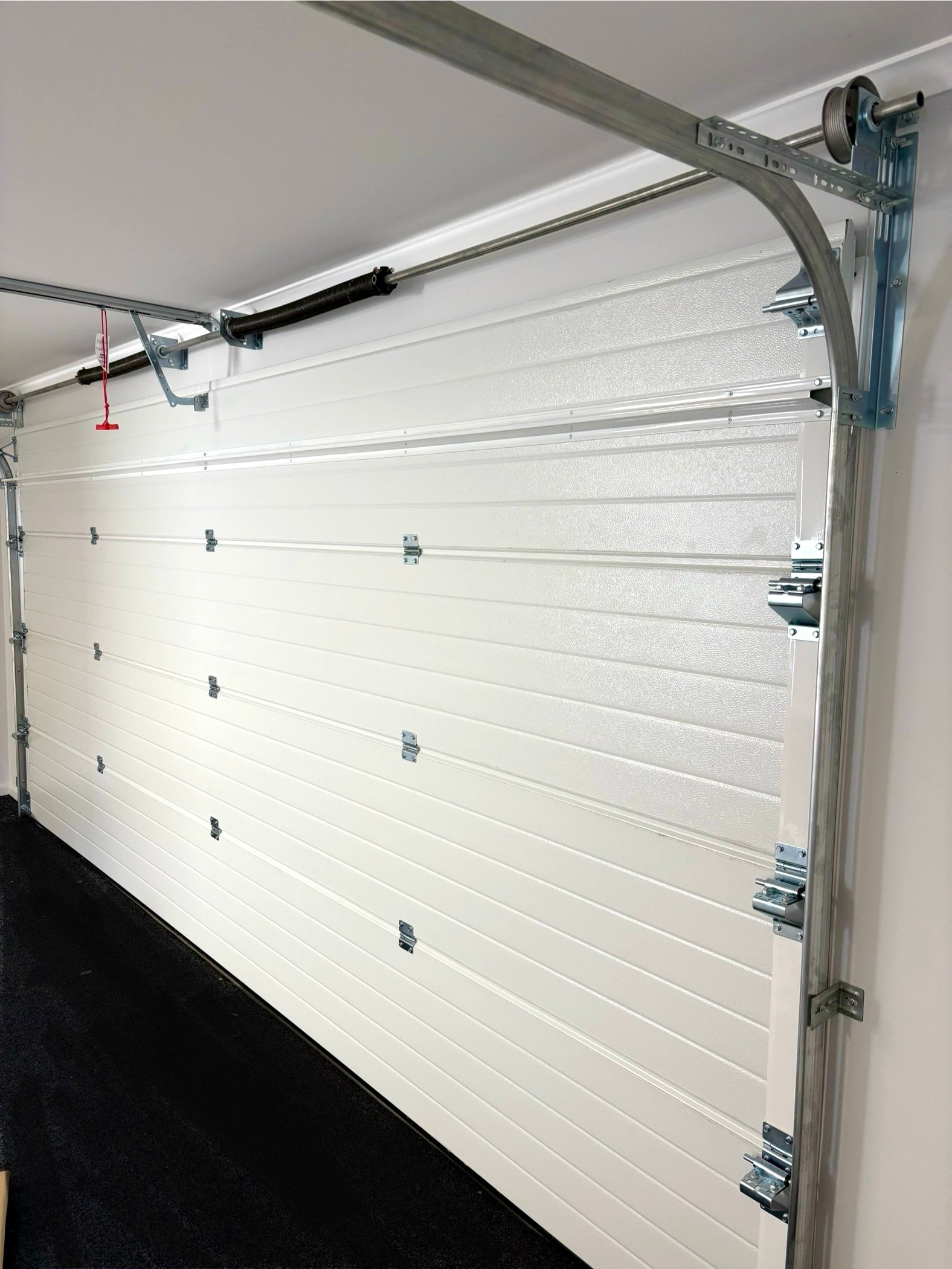

The Premium Range Door looks just as good on the inside as it does the outside. The interior is finished in a smart powder-coated white and the door surface adds visible light reflections within the garage to what is usually a dull industrial look door

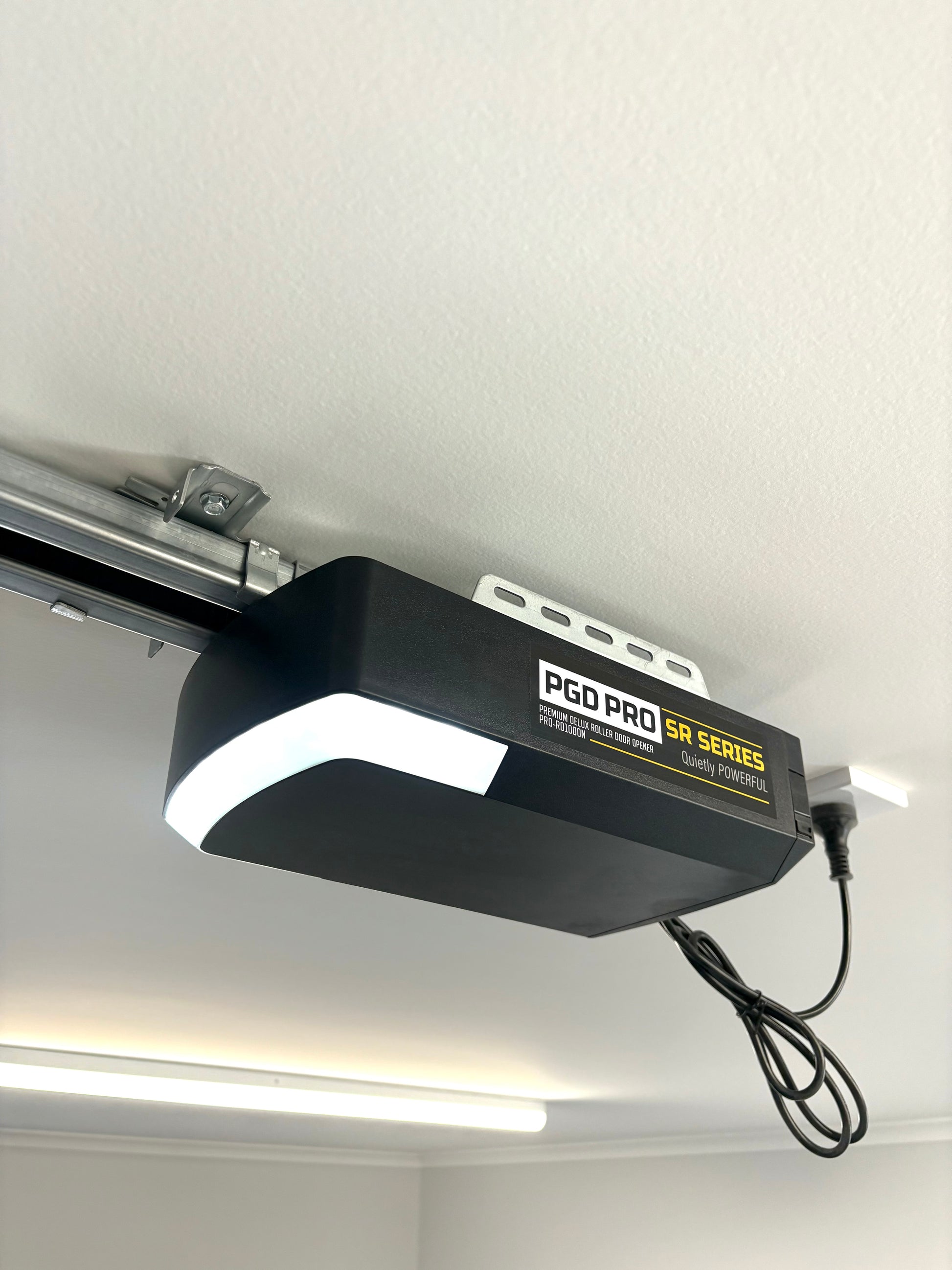

MOTOR DESCRIPTION:
MODEL RANGE: Premium Garage Doors - PRO-SR Series "quietly POWERFUL"
MODEL CODE: PGD-PRO S1000N (100kg lift force)
high powered residential soft touch PGD-PRO S1000N.

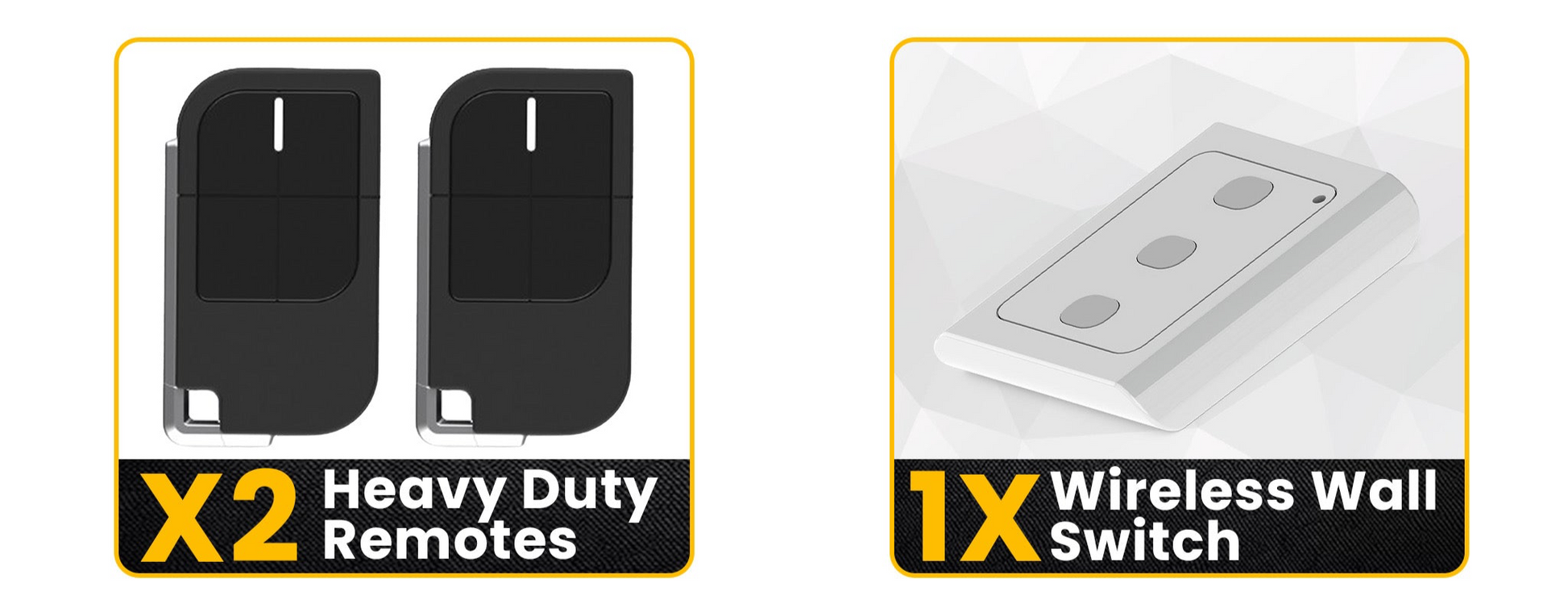

3mm boxed steel rail housing, maintenance free belt drive. Including heavy duty four button key remotes and a wireless wall switch coded.
Motor meets or exceeds NZ safety standard with softtouch bounce back advance safety feature.
Premium Five year full replacement warranty.
"PLEASE READ"
Once the order is placed on of our team will call you do go over all details and specs to avoid any issues you may face when installation day comes.
The Door will come as supply only and purchased at owners risk if purchasing PGD trust that the buyer has some installers knowledge or has a local supplier to carry out the installation, incorrect installation WILL void any warrantys
Tools required. Drill with 10mm driver, 14,10mm spanner, level, angle grinder (to cut vertical tracks), torsion spring winding bars - this can be very dangerous you must follow instructions very carefully, vise grips.
Shipping - Flat rate offered to North and South Island (some areas may not be covered due to truck size and limited areas) PGD may cancel and refund any order
Current turnover day of order - order dispatched 3-4 days delivery currently 4-5 days
CURRENTLY SHIPPING IS FREE NZ WIDE LIMITED OFFER
