Garage Door Bottom Seal Replacement NZ – Stop Water, Draughts and Dust

Universal Replacement Seal for Roller and Sectional Garage Doors

Is water, wind, dust or cold air getting underneath your garage door?

This flexible universal garage door bottom seal provides a simple and effective replacement for damaged, flattened or missing seals. It is suitable for many common New Zealand roller and sectional garage doors and can be trimmed to the exact width required.

IMPORTANT: This listing is for the rubber seal only.

If you also require the aluminium carrier that holds the seal, please see our other listings for:

• Aluminium seal carrier only

• Complete bottom seal and aluminium carrier kits

Available Seal Lengths – The More You Buy, the More You Save

Select from:

• 1 metre

• 3 metres

• 4.5 metres

• 6 metres

• 10 metres

Our larger lengths offer better value per metre, so the more seal you purchase, the more you save. This is ideal for wider garage doors, multiple doors, installers, property managers and trade customers.

Measure the full width of your garage door before ordering. If your measurement falls between the available sizes, select the next length up and trim the seal to fit.

Example: If your door measures 4.2 metres wide, select the 4.5-metre option.

Need seal for several doors? Add together the total length required and select the larger option for the best price per metre.

Designed to Fit Most NZ Garage Doors

Suitable for many common New Zealand garage door brands and configurations, including:

• B&D

• Garador

• Dominator

• PGD – Premium Garage Doors

• Nu-Style

• Sovereign

• Many other roller and sectional garage doors

Garage door seal profiles can vary between models and manufacturing years. Please compare your existing carrier or track with the product photographs and measurements before ordering.

No More Guessing Between Common Seal Types

Many garage doors throughout New Zealand use either:

• T-slot bottom seals

• Rounded or bead-style bottom seals

Original replacement seals can be difficult to identify, unavailable or discontinued.

Our universal replacement seal is designed to suit many commonly used garage door bottom carriers, providing a straightforward replacement option without needing to identify the exact age or model of the door.

If your existing carrier is missing, damaged or incompatible, use our complete seal and aluminium carrier kit instead.

What This Bottom Seal Helps With

A correctly fitted garage door bottom seal helps reduce:

• Water blowing underneath the door

• Cold air and draughts

• Dust, dirt and leaves entering the garage

• Light showing beneath the door

• Minor gaps caused by slightly uneven concrete floors

• Insects and other debris entering beneath the door

It is a simple replacement that can make a significant difference to the cleanliness and weather resistance of your garage.

Which Product Do You Need?

Option 1: Rubber Seal Only

Choose this listing if your garage door already has a suitable bottom carrier and you only need to replace the flexible rubber seal.

Option 2: Aluminium Carrier Only

Choose our separate aluminium carrier listing if you already have a compatible seal but need a new screw-on carrier or housing.

Option 3: Complete Seal and Carrier Kit

Choose our separate seal and aluminium carrier kit if:

• Your door does not currently have a bottom carrier

• The existing carrier is damaged or corroded

• Your original seal profile is unavailable

• You are unsure whether this seal will fit your existing carrier

• You want to replace the complete bottom sealing system

Please see our other product listings for the carrier-only and complete seal-and-carrier options.

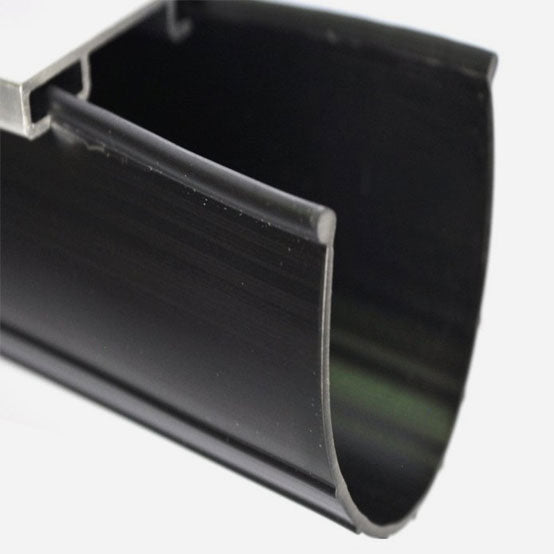

Product Specifications

• Product: Universal garage door bottom seal

• Seal width when laid flat: Approximately 61 mm

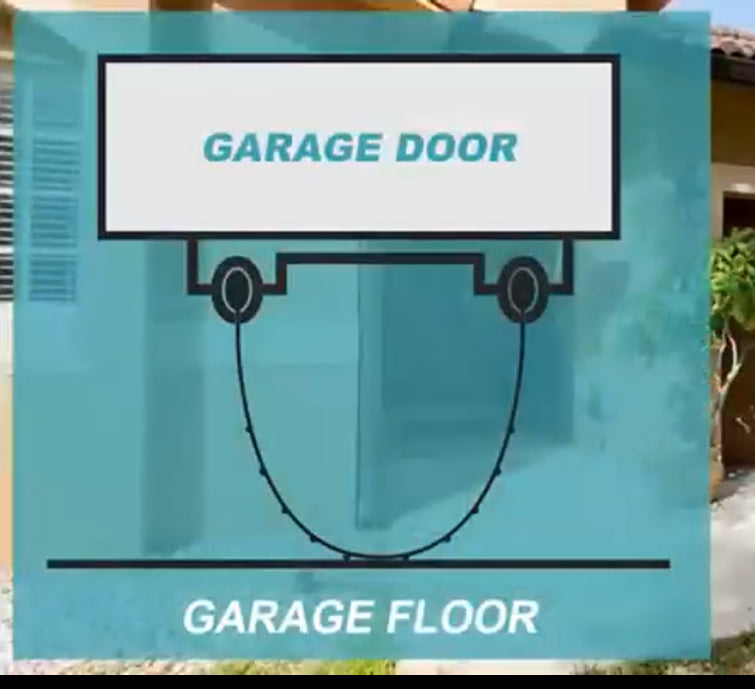

• Typical gap coverage: Approximately 30–45 mm

• Material: Flexible rubber

• Colour: Black

• Suitable door types: Roller and sectional garage doors

• Available lengths: 1 m, 3 m, 4.5 m, 6 m and 10 m

• Installation: Slides into a compatible existing bottom carrier

• Final sizing: Cut to the required door width during installation

Gap coverage will vary depending on the shape and position of the carrier, door adjustment and floor level.

Quick and Easy Installation

1. Open the garage door and safely secure it.

2. Remove the old or damaged seal from the bottom carrier.

3. Clean dirt and debris from inside the carrier channels.

4. Apply a small amount of soapy water or suitable lubricant if required.

5. Slide the new seal evenly into the carrier.

6. Centre the seal and trim it to the finished door width.

7. Crimp or secure the ends if required to prevent movement.

For wider doors, having a second person feed the seal into the carrier can make installation easier.

Do not place your hands near springs, cables or other tensioned garage door components. If the door is damaged, unbalanced or unsafe to operate, arrange professional servicing before attempting installation.

When Should the Bottom Seal Be Replaced?

Replacement may be required if:

• You can see daylight underneath the closed door

• The existing seal is cracked, torn or missing

• The rubber has become hard or permanently flattened

• Water, dust or leaves are entering the garage

• Sections of the seal are pulling out of the carrier

• The door no longer seals evenly against the floor

Actual service life depends on sun exposure, weather conditions, floor condition, door use and maintenance.

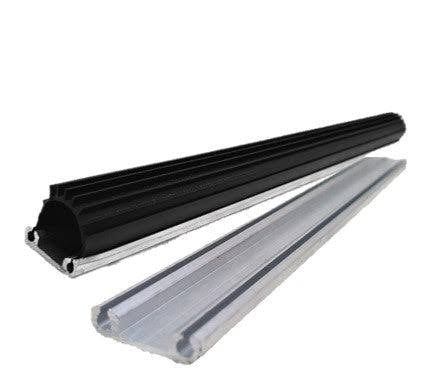

Need a New Aluminium Carrier?

We also stock a strong, screw-on aluminium bottom seal carrier designed specifically to suit this seal.

The carrier has an approximately 25 mm-wide flat mounting surface. Your garage door generally requires a suitable flat section of at least 15 mm along its bottom edge to allow secure fixing.

Our aluminium carriers are supplied in manageable 1.5-metre sections. Multiple sections can be installed end-to-end across the width of the door.

Please see our other listings for:

• Aluminium bottom seal carrier only

• Complete aluminium carrier and rubber seal kits

Mount the carrier, slide in the seal, trim it to size and complete the installation.

NZ Stock and Nationwide Delivery

• Stocked locally in Manawatū–Horowhenua

• Nationwide New Zealand shipping

• Generally dispatched within 1–2 working days

• Multiple lengths available for single doors, double doors and bulk requirements

• Better value per metre when purchasing larger lengths

Quick Buying Guide

1. Measure the complete width of your garage door.

2. Check that your existing bottom carrier is compatible.

3. Select the next available seal length equal to or longer than your door width.

4. Trim the seal to the exact size during installation.

5. If your existing carrier is missing or unsuitable, order our complete seal and carrier kit instead.

Available sizes: 1 m, 3 m, 4.5 m, 6 m and 10 m.

The larger the length, the lower the price per metre—buy more and save more.
