Side Mounted Garage Door Motor

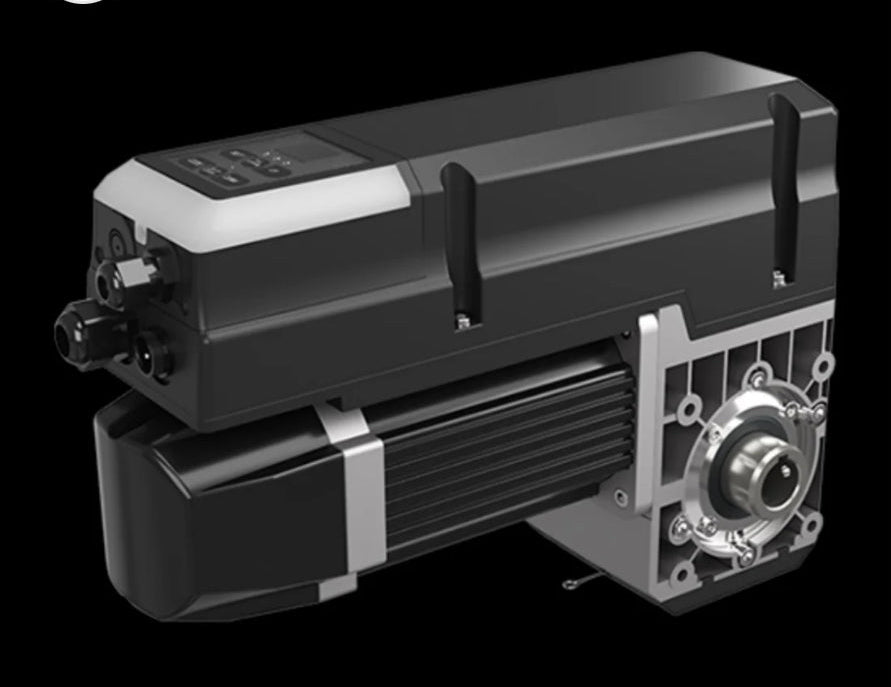

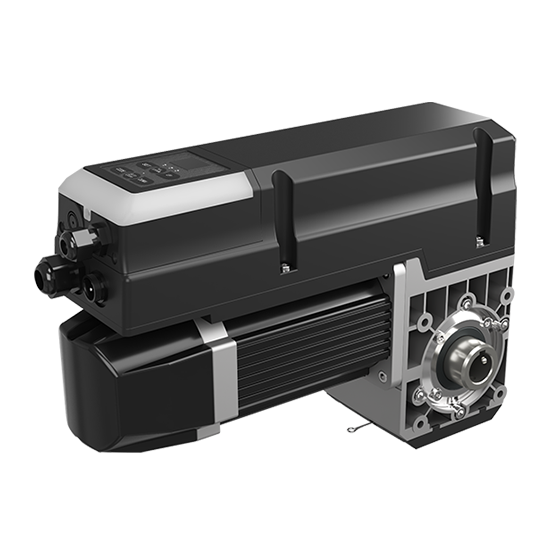

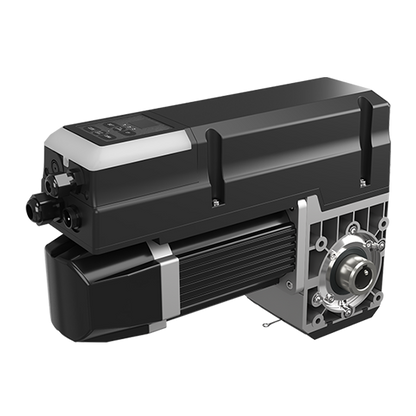

PGD BASE 35 Industrial Jackshaft Door Opener

The PGD BASE 35 is a side-mounted industrial garage door opener designed to eliminate the need for an overhead rail system.

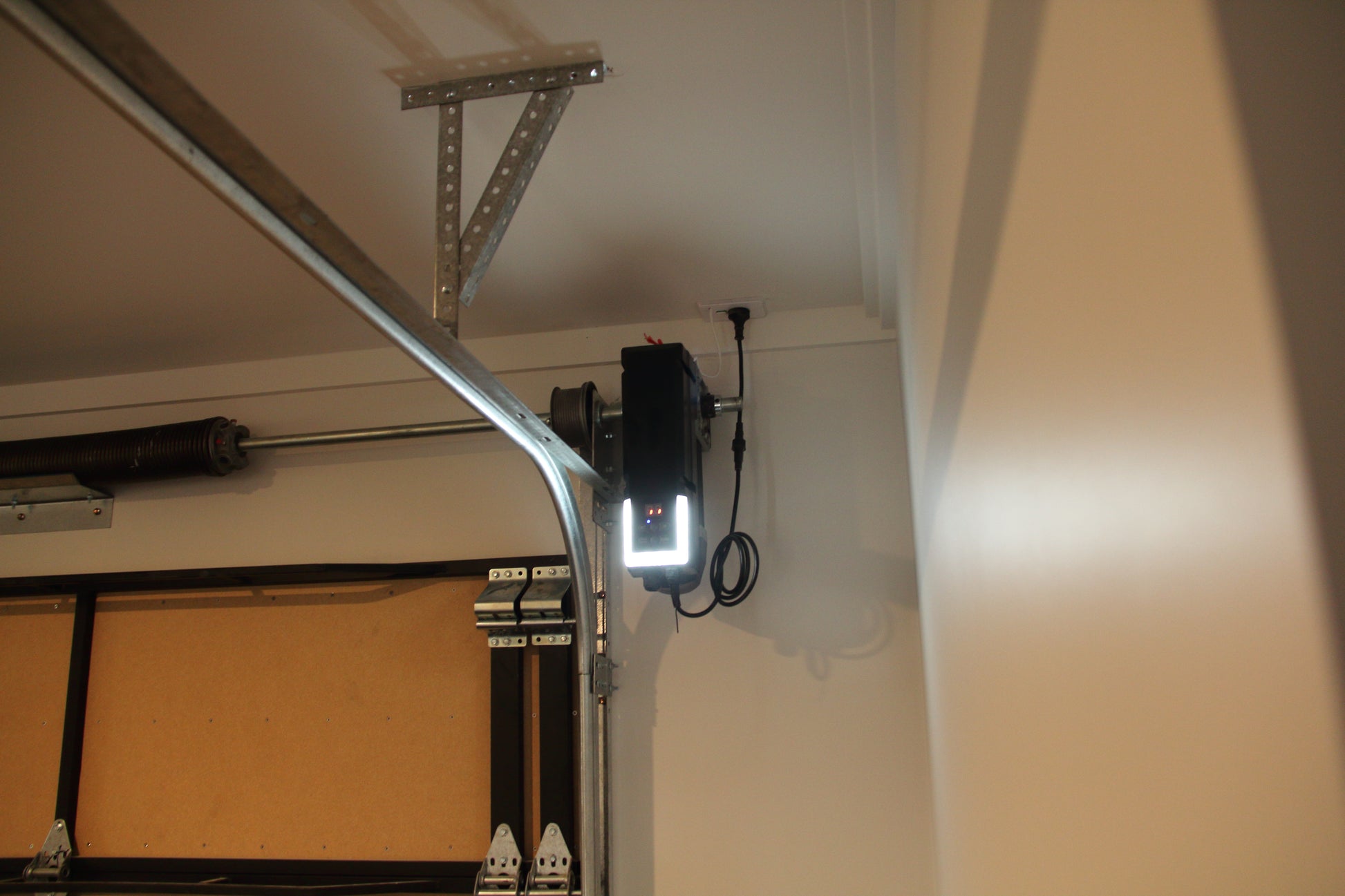

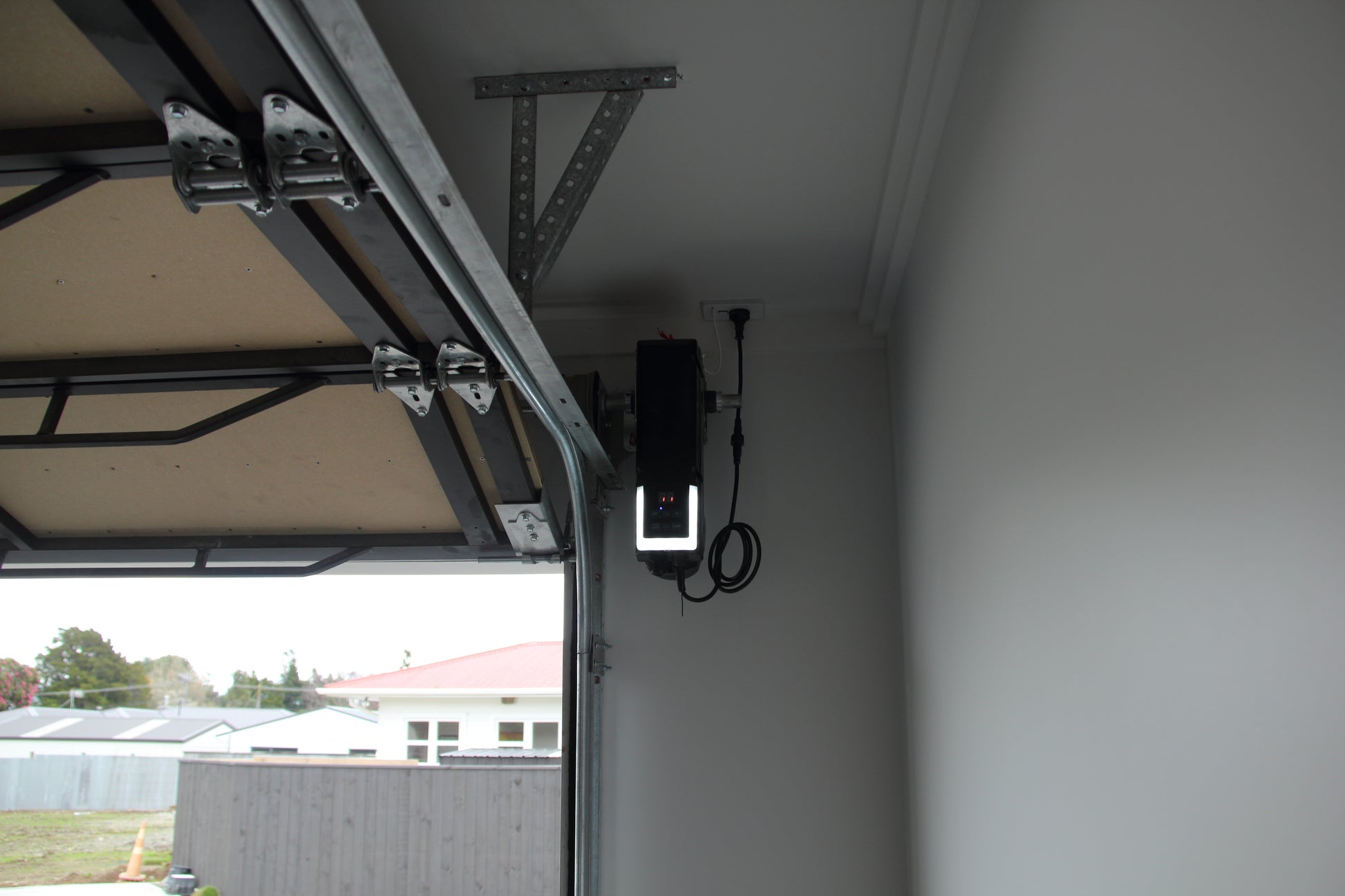

Mounted directly onto the door pole shaft, this unit sits neatly on the side of the door, delivering a clean install, more usable ceiling space, and a simpler overall setup.

Built for reliability, it’s ideal for light commercial and heavy residential applications where strength, space, and performance matter.

Product Overview

Unlike traditional overhead motors, the PGD BASE 35 attaches directly to the door shaft (pole) on the side of the opening. This removes the need for ceiling rails, making it perfect for garages with limited headroom or where a tidy, open ceiling is preferred.

The DC motor provides smooth, controlled operation while reducing wear on the door system over time.

Key Features

• Side-mounted jackshaft design (no overhead rail required)
• Mounts directly to the door shaft/pole
• Clean install with full ceiling clearance
• Smooth and quiet DC motor operation
• Compact industrial-grade construction
• Adjustable limit settings for precise travel
• IP54 rated for dust and moisture protection
• Operates in temperatures from -20°C to +60°C

Door Compatibility

Suitable for:

• Standard sectional doors
• High-lift sectional doors
• Vertical lift doors

Maximum capacity:

• Door size up to 18m²
• Door weight up to 234kg

Technical Specifications

• Maximum output torque: 35Nm
• Rated torque: 25Nm
• Motor power: 0.35kW
• Output speed: 24–32 RPM
• Shaft size: 25.4mm
• Limit switch range: 15 turns
• Power supply: 110V / 220V
• Protection rating: IP54
• Maximum cycles: 20 per hour

Applications

Ideal for:

• Workshops
• Warehouses
• Commercial buildings
• Residential garages where ceiling space is limited or needs to stay clear

Summary

The PGD BASE 35 is a practical, space-saving alternative to traditional overhead motors. By mounting on the side of the door and eliminating rails, it delivers a cleaner install, easier setup, and reliable day-to-day performance.
