Side-Mounted Garage Door Motor – Sectional Residential-Commercial

PGD-EMR45 Sectional Pole Mounted Garage Door Motor. Commercial, Residential

Quiet. Tough. Space-saving.

The PGD-EMR45 is a powerful, side-mounted garage door motor designed to save ceiling space while handling large, heavy sectional doors with ease. Perfect for both homes and commercial buildings where overhead room is limited or a cleaner look is preferred. It mounts directly to the torsion spring shaft for a sleek, efficient setup.

Ideal for:

• Homes needing quiet, reliable performance
• Commercial sites with tall or heavy doors
• Garages with low headroom or limited space

What’s included:

• Heavy-duty drive motor with built-in digital control panel
• 2x commercial-grade four-button remote controls
• 1x wireless keypad for easy outside access
• Full installation kit (mounting bracket, shaft adapter, screws, manuals)
• Manual release with rope

Optional Add-On:

• Wired wall-mounted up/down control panel

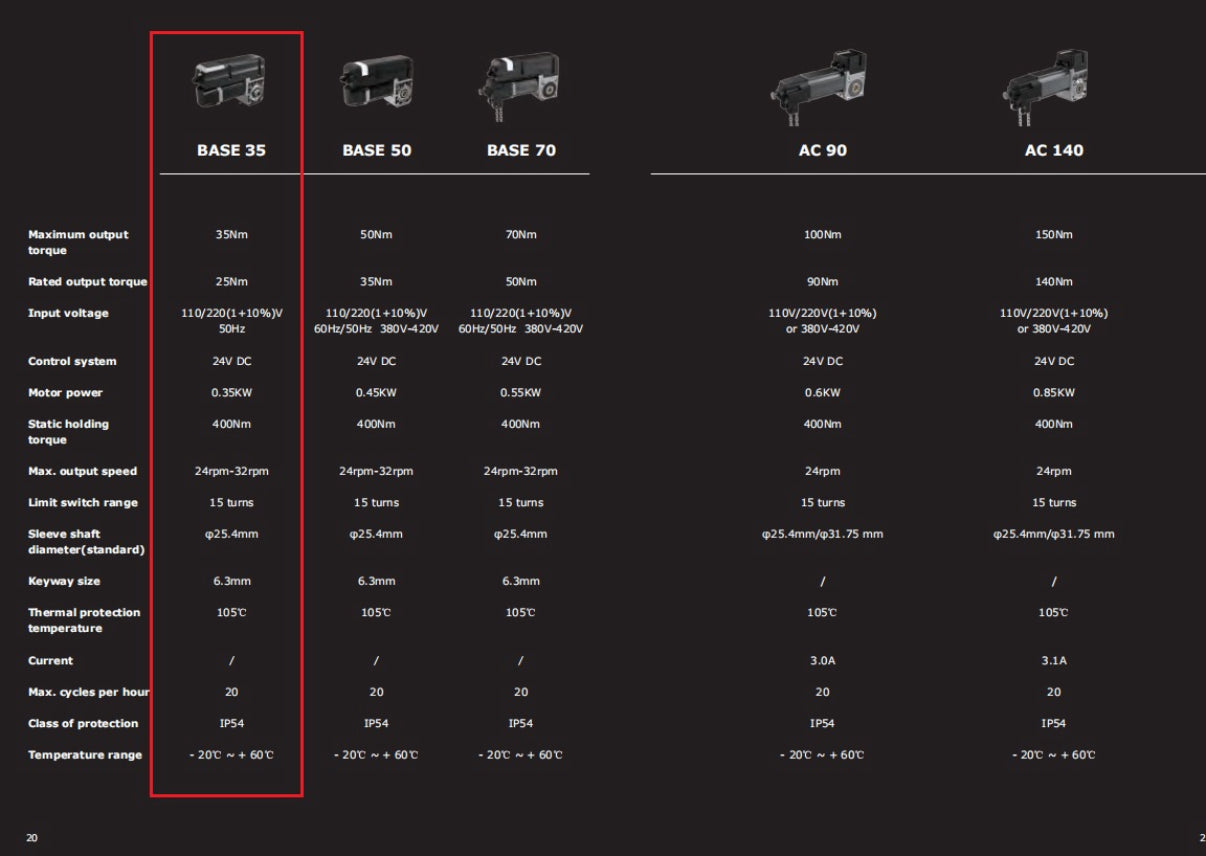

Technical Specs:

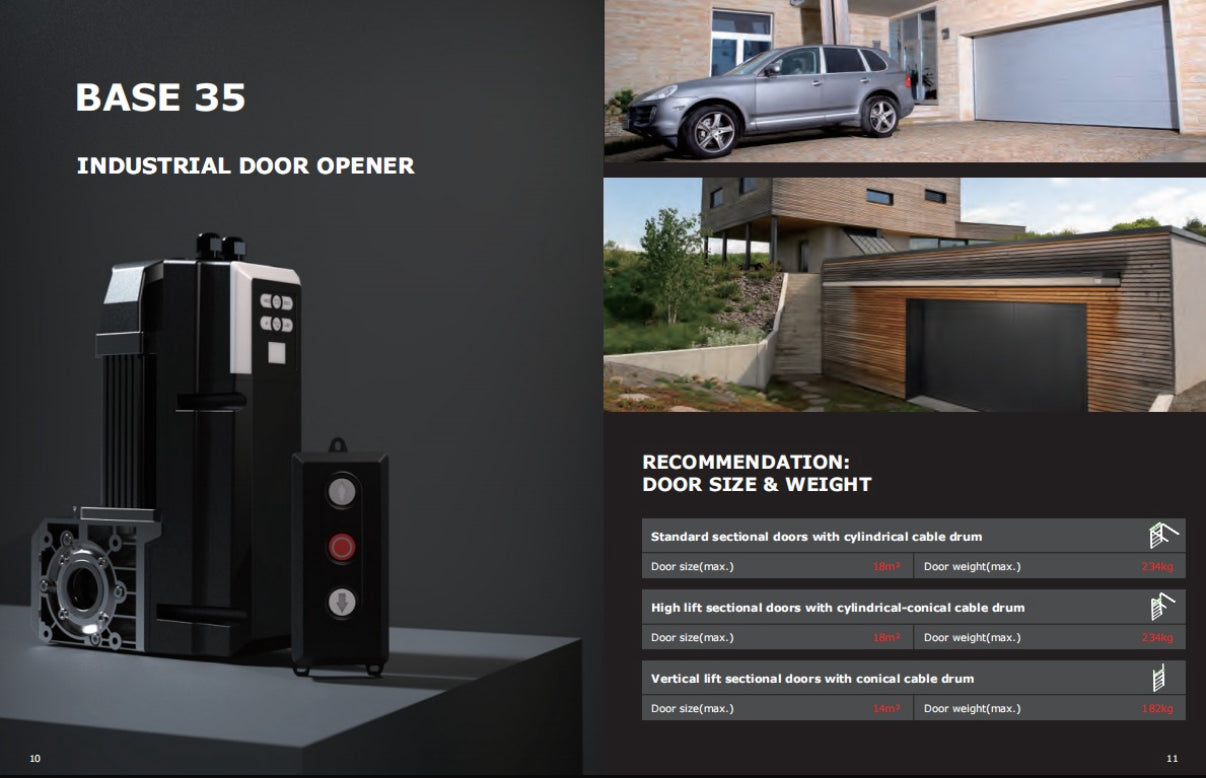

• Handles doors up to 18m² and 234kg
• Max door height: 5.0m
• Motor torque: 35Nm (running) / 400Nm (holding)
• Voltage: 110/220V, 50Hz
• Quiet operation: <70dB
• Rated for 20 cycles/hour
• Weather protection: IP54 (dust & splash resistant)
• Operating temperature: -20°C to +60°C
• Shaft size: 25.4mm with 6.3mm keyway

Warranty:

7-year NZ-backed warranty.

Optional Accessories:

• Safety edge sensor kit
• Chain hoist manual lift module
• Wired wall control panel
