Swing Gate Motors PGS-600 Full Install Kit

PGS-600 Swing Gate Duel Automation Kit

Premium Gate Swing – Built for Strength, Safety & Reliability

The PGS-600 is a heavy-duty automatic swing gate opener designed for residential, farm, and commercial properties. Built with aviation-grade aluminium, a bronze worm pinion drive, and a high-efficiency 180 W motor, it delivers smooth, powerful operation for gates up to 3 m per leaf or 300 kg per gate.

Key Features:

• Powerful 600 mm Linear Actuators:
  Designed for strength and durability, providing up to 4000 N of thrust for effortless operation on larger or heavier gates.
• AC 220 V / 110 V Power Input:
  Runs from standard mains supply, with built-in transformer inside the control box for reliable low-voltage operation.
• Quiet & Efficient:

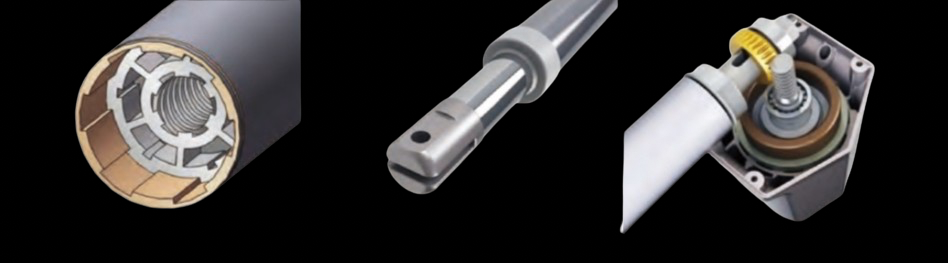

  Noise levels under 55 dB, with bronze worm pinion gearing for smooth, long-life performance.
• Weather Resistant:
  Rated IP44, engineered to handle New Zealand conditions – from coastal air to cold winters.
• Thermal Protection:
  Automatically protects the motor at 135 °C, ensuring extended lifespan and safe operation.
• Operating Temperature:
  Reliable from –45 °C to +65 °C.
• Working Cycle: 25 % duty rating, perfect for residential and light-commercial use.

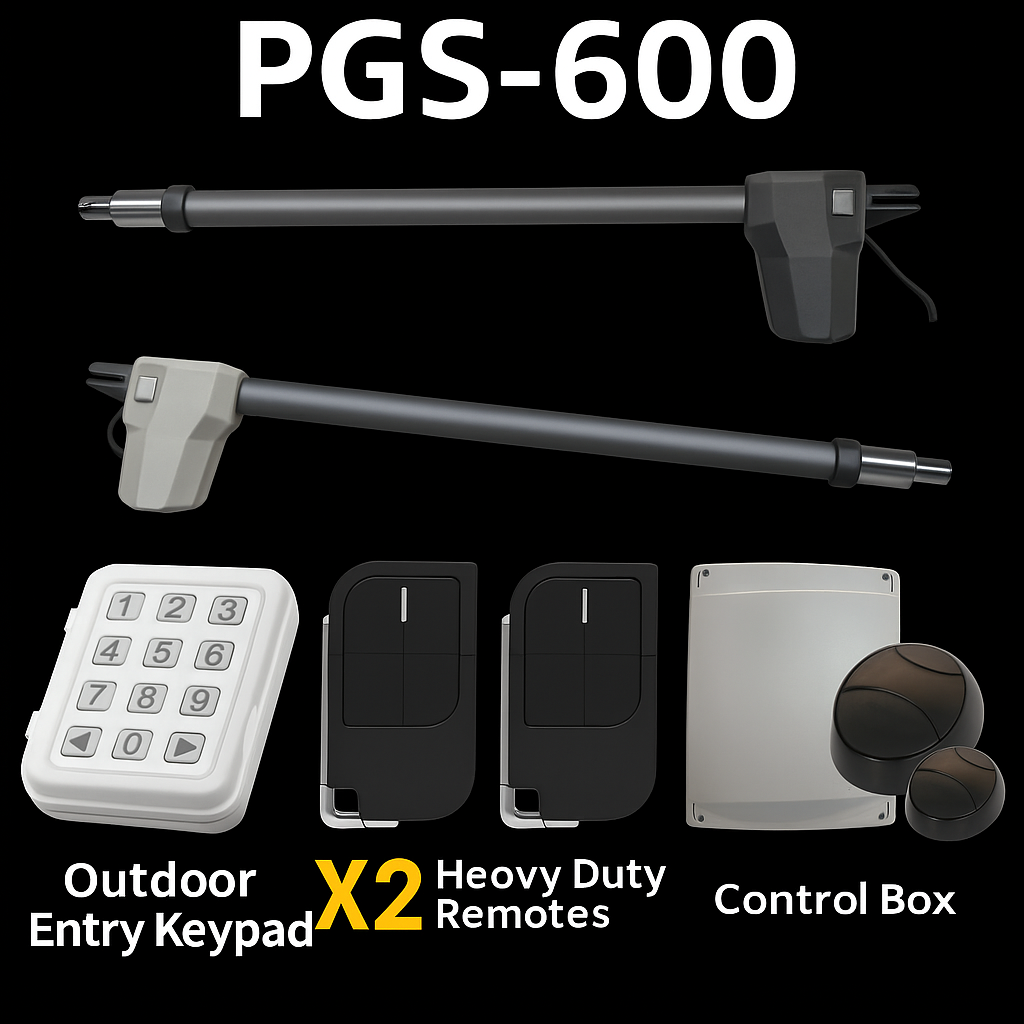

Included in the Kit

• 2 × PGS-600 Linear Swing Gate Motors

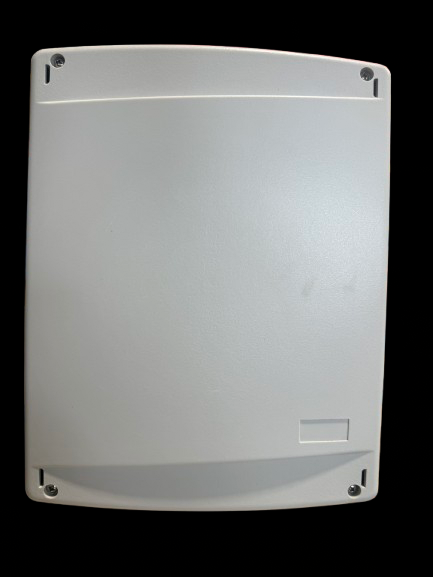

• 1 × Weatherproof Control Box with built-in transformer

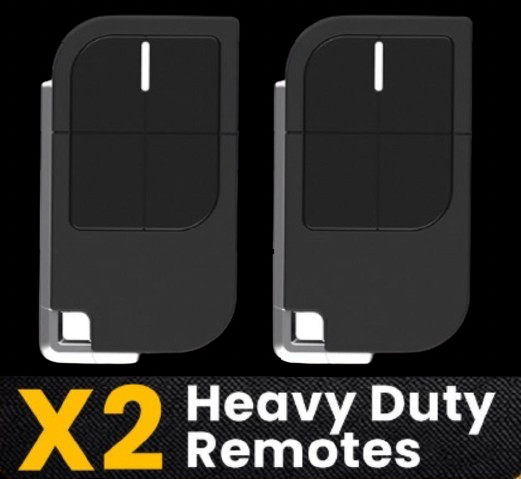

• 2 × Heavy-Duty Remotes (long-range, four-button design)

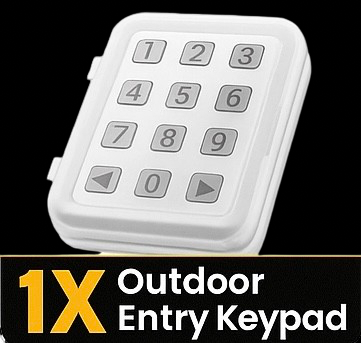

• 1 × Outdoor Entry Keypad (wireless, weather-sealed)

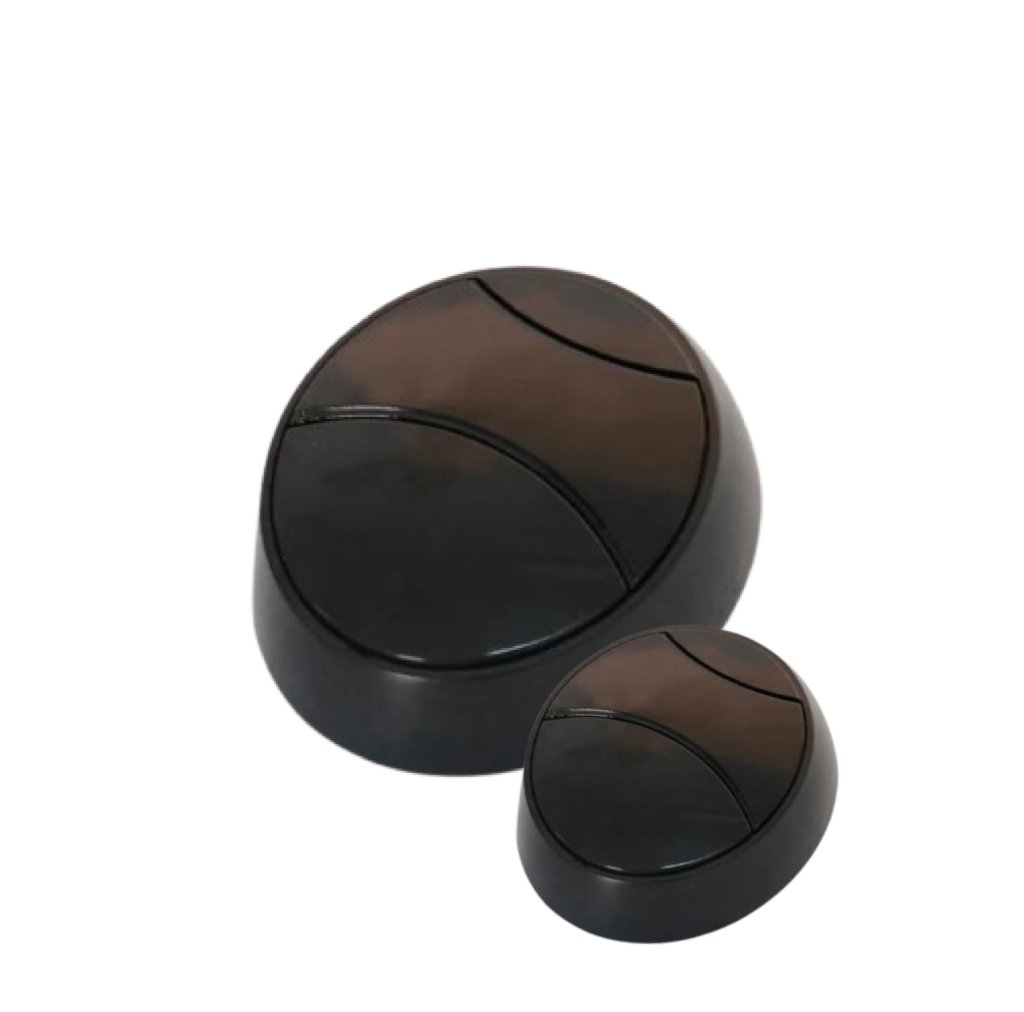

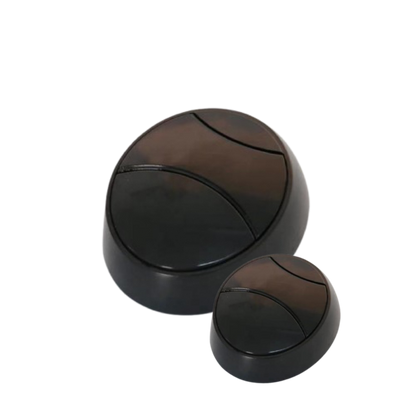

• 1 × Pair of Infrared Obstruction Sensors (auto-reverse safety system)
• Full Mounting & Installation Kit (brackets, pins, and fixings included)

Specifications (per leaf)

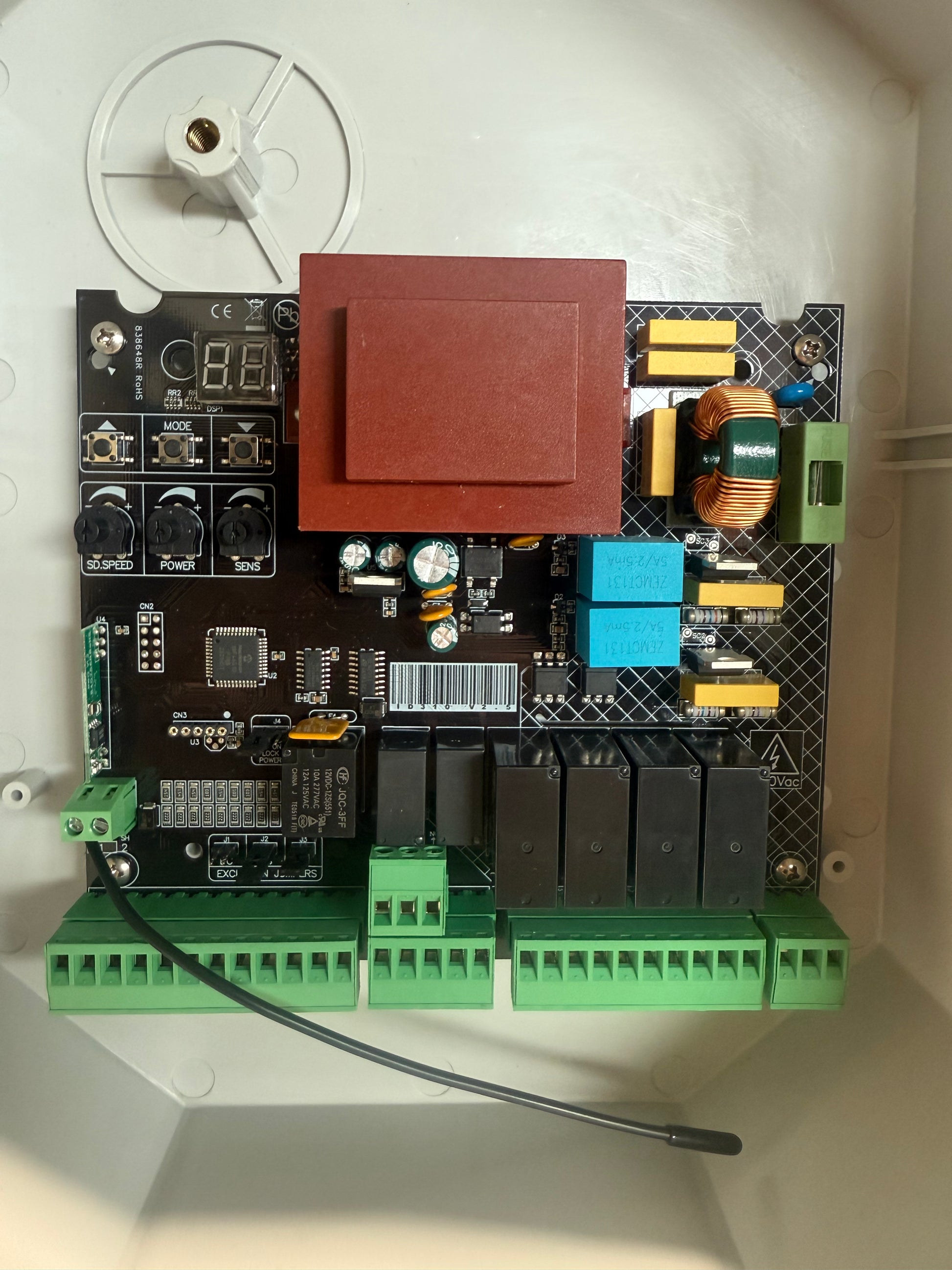

 Stocked and sold NZ wide. We also offer this same model in “solar setup” for the same price. The main circuit board will be swapped before sending.
