Garage Door & Gate, Phone Controlled Universal Wifi DIY Kit (All NZ Models)

PGD – Universal Smart Phone Control – WiFi Garage & Gate Kit.
Viewed a few options? Will this one work with your garage door motor or gate opener? Read on, we’re sure it will.

Garage & Gate Motor Compatibility:

If your garage or gate motor has two terminals for a wall button or any other wired switch, this kit will work. For garage door motors you may have a button up/down switch on you garage wall- follow the wires to the back of the garage door motor- those two terminals are where the pgd wifi wires too, the unit has its own power plug, no trying to wire it in to the motor for power.

A smarter way to control your garage door or gate — right from your phone.

We’ve done the hard work and taken the confusion out of setting up WiFi control for your motor. This kit combines everything you need: a WiFi receiver, pre-wired power supply, and magnetic open/close sensor pads. Just plug it in, connect a few wires, and Smart Control your door from your phone. Still not sure? Send us a email and we will respond asap

Why it’s a game-changer:

• No need to replace expensive remotes — just use your phone
• Works with most garage door and gate motors that have wall-button inputs (2 wires) that easy!
• Fully DIY-friendly – no electrician or tradie needed

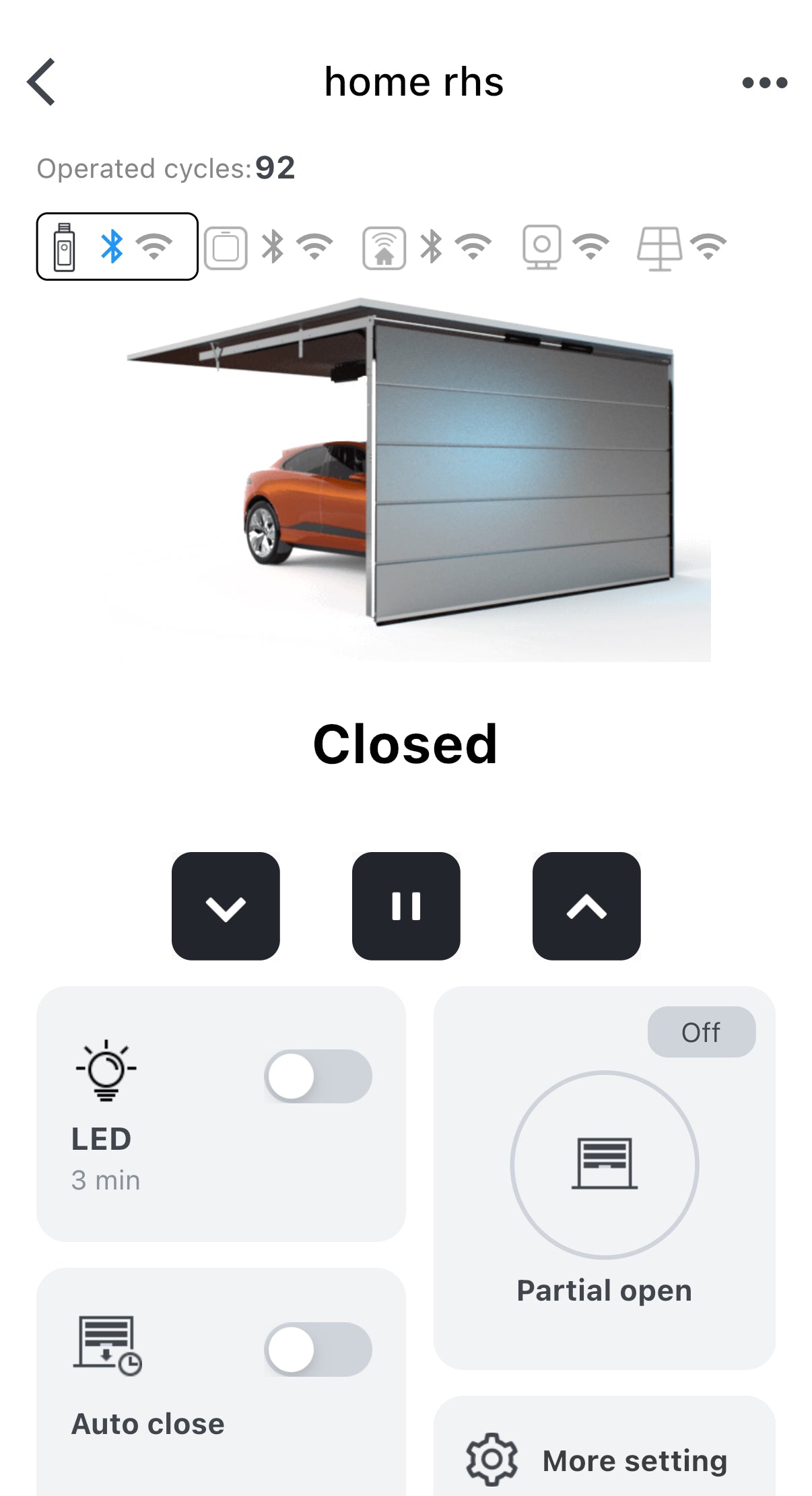

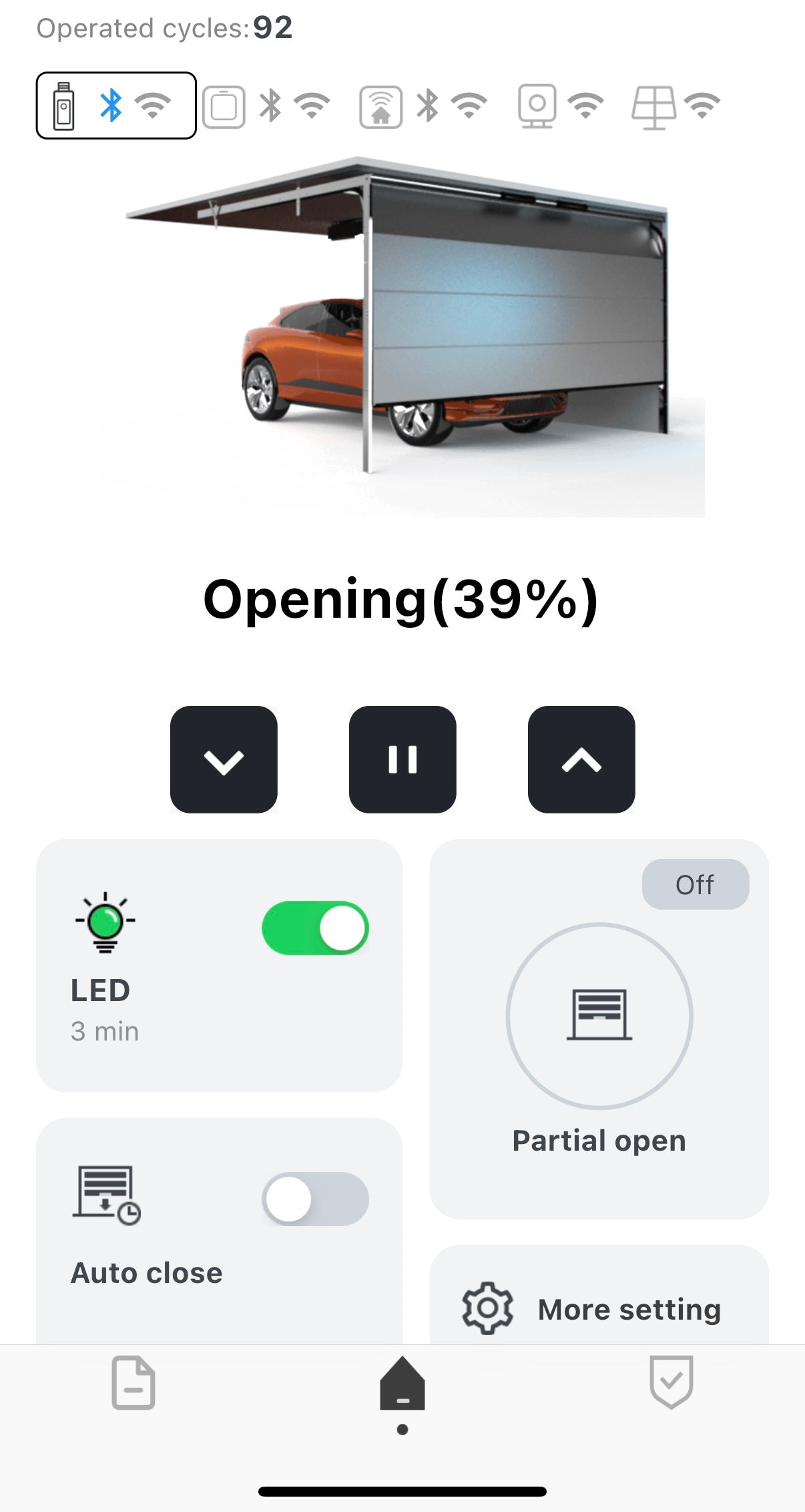

• EasyNav app control with notifications and open/close status
• Works with Alexa, Siri, and other smart home systems
• Installs in 15–20 minutes with just a screwdriver and your phone
• Magnetic sensor pads ensure reliable open/close detection

Garage Door Motors (Tried & Tested):This list may look confusing. To make it easy - kits is compatible with all doors (if your door or gate motors are 1-2 years olds new tech may be running on them) older than 1-2 years 99% chance of compatibility.

• Merlin – M-802, M-832, M-930, M-230T, M-430R, Commander (non-MyQ)
• ATA – GDO-2, GDO-6, GDO-7v2, GDO-8v3 EasyRoller
• Dominator – Most pre-MyQ models with PB/COM terminals
• B&D – Controll-A-Door P/Q/S (older models)
• Force One / Force 1000 / Force 2000
• Superlift, Guardian, Auto Openers, Richmat
• LiftMaster, Chamberlain, Craftsman – models before 2011
• Genie, Overhead Door, Raynor – most models excluding newer digital systems

Gate Motors (Compatible Brands & Models):

• ATA – NeoSlider, Elite Swing, DCB-05 control boards
• FAAC – 740, 741, 415, 400, 402 with push-button inputs
• Nice – Robo, Toona, Wingo, Spin (with “Step-by-Step” terminal)
• Centurion – D2 Turbo, D5 Evo, D10 (dry contact mode)
• Centsys, BFT, LiftMaster, and many more that accept wired momentary switch inputs

 To confirm: If your motor opens when you briefly touch two terminals together (usually labeled “PB,” “Trigger,” “COM,” or “Step”), it will work with this kit.

How It Installs:

• Plug the receiver into the same ceiling outlet as your garage or gate motor
• Stick the receiver to the side of the motor housing
• Connect two wires from the receiver to the wall switch terminals on the motor
• Mount the magnetic sensor pads — one on the door/gate and one on the rail, frame, or wall
• Use the EasyNav app to sync and control

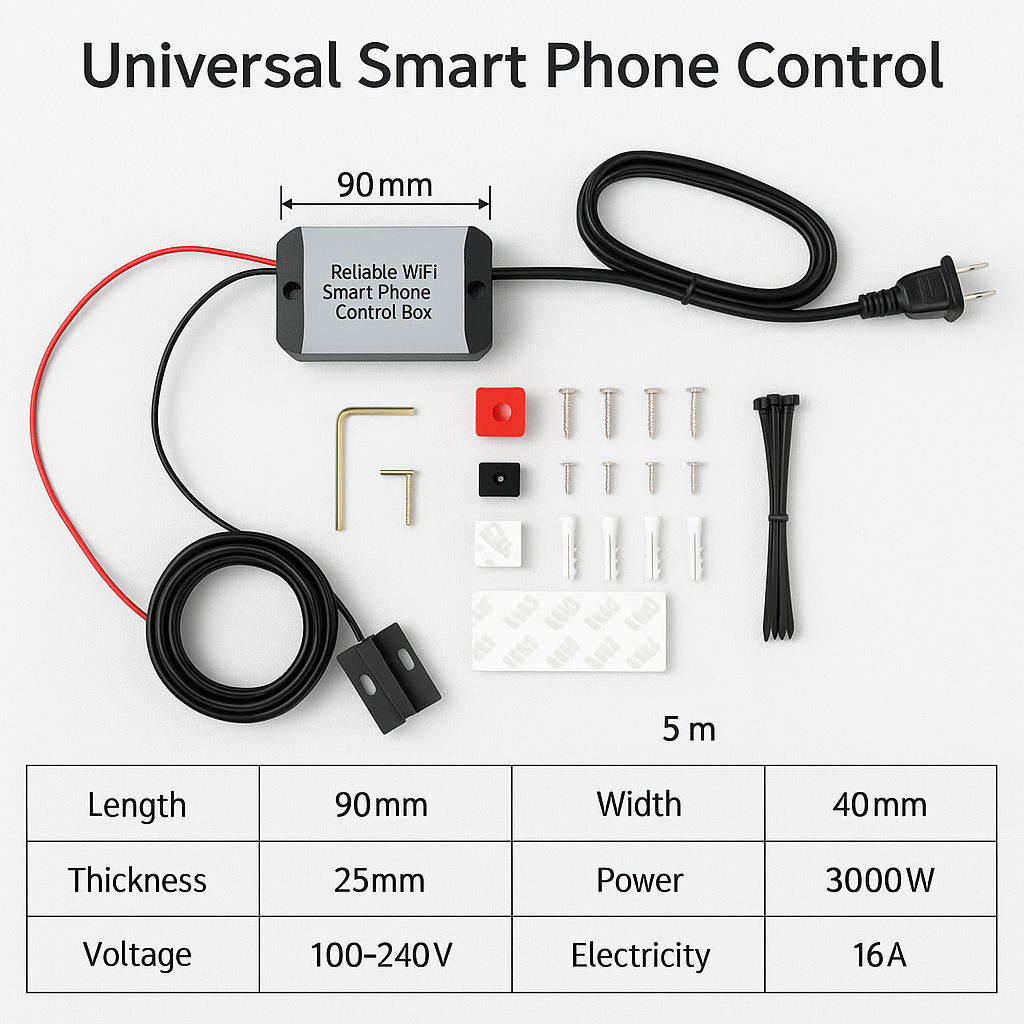

Included in the Kit:

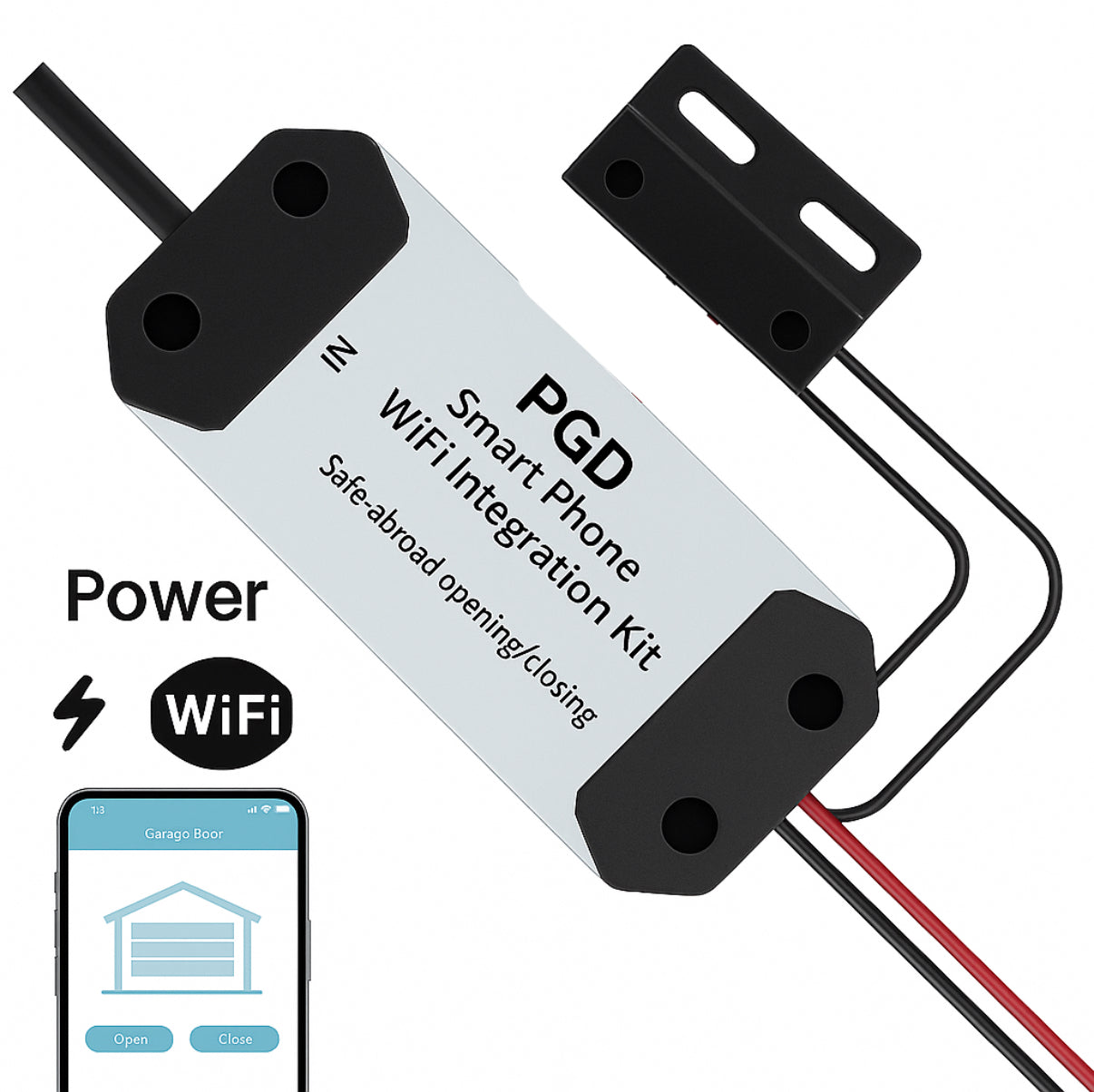

• 1x Reliable WiFi Smart Phone Control Box
• 1x Magnetic sensor kit (2 pads + 5m cable)
• 1x Pre-wired power adapter
• Screws, anchors, 3M pad, cable ties & reset button

Specs Overview:

No tools, no sparkies, no stress.

If your motor has 2 wire inputs, it’s ready to go.

For more advanced digital motors, just message us — we’ve got solutions for those too.

NZ Fast Shipping – Pickup Available from Our Warehouse
